Gost Standard Motor

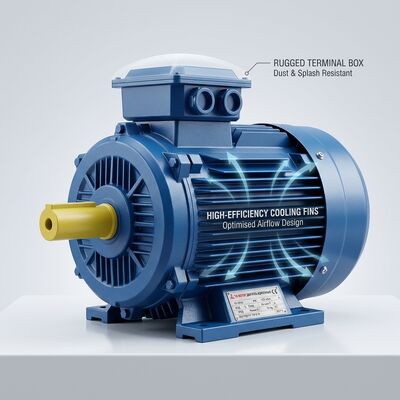

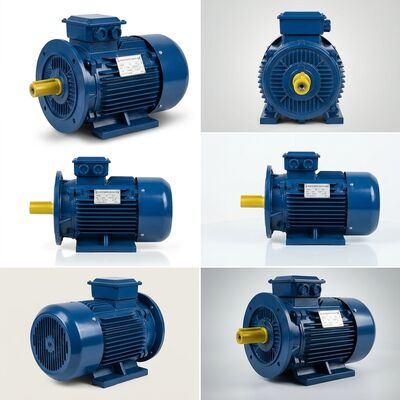

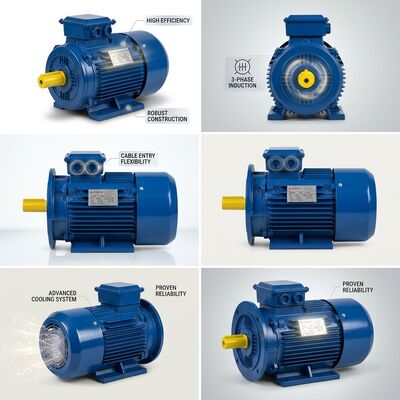

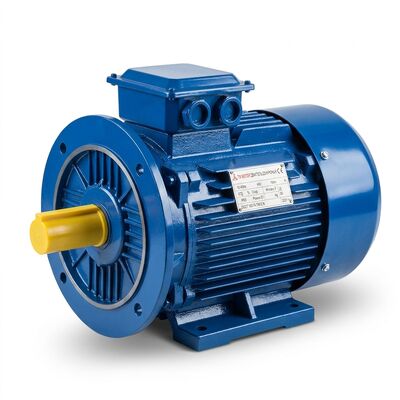

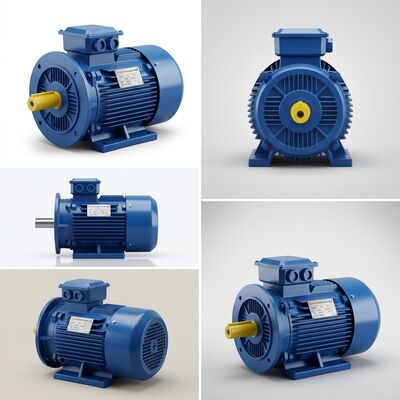

GOST Standard ANP100L4 4kW 5.5HP IE3 High Efficiency Compressor Motor 380V 50Hz Russia

All Category

PMDC Motor

Mrs. Anny Song

motorexport@bimo-idea.com

0086-18802094629

Contact Now

GOST Standard ANP100L4 4kW 5.5HP IE3 High Efficiency Compressor Motor 380V 50Hz Russia

Brand Name:	BIMO
Model Number:	ANP100L4
MOQ:	1 Piece
Price:	USD 66 - 88 / Piece
Packaging Details:	Polyfoam lined export carton or plywood case, shaft and flange protected with anti-rust film
Payment Terms:	T/T, L/C at sight, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE, ISO 9001, GOST compliant

Model:

ANP100L4

Rated Power:

4kW (5.5HP)

Rated Voltage:

Frequency:

Number Of Poles:

4 Pole

Rated Speed:

1460 R/min

Rated Current:

Efficiency Class:

IE3 (88.6%)

Power Factor:

Protection Degree:

Insulation Class:

Class F

Cooling Method:

IC411

Mounting Type:

IM1081 / B3 Foot Mounted

Frame Size:

Housing Material:

Cast Iron

Duty:

S1 Continuous

Ambient Temperature:

-40 C To +40 C

Standard:

GOST 2479 / GOST R 51689

Application:

Air Compressors, Water Pumps, Fans, Conveyors

Market:

Russia, CIS Countries

Supply Ability:

1500 Pieces per Month

Highlight:

GOST Standard 4kW Compressor Motor

IE3 High Efficiency Induction Motor

ANP100L4 Cast Iron 4 Pole Motor

Product Description

GOST Standard ANP100L4 4kW High Efficiency Motor for Air Compressors and Pumps

The ANP100L4 is a 4kW 5.5HP four pole three phase induction motor made for continuous compressor and pump duty. Reciprocating and small screw compressors need steady torque at constant speed, and the 1460 r/min rotor with balanced cast iron frame delivers exactly that, with low vibration that protects bearings and couplings. IE3 efficiency keeps current draw and winding temperature down during long shifts, while IP55 sealing copes with dusty compressor rooms and damp pump houses.

Built to GOST standard for the Russian and CIS market, the ANP100L4 delivers IE3 high efficiency in a compact 100L cast iron frame. Foot, flange and shaft dimensions interchange with the ANP and AIR series motors already installed in Russian plants, so replacement needs no change of base plate or coupling.

Technical Specifications

ANP100L4 4kW 4 Pole Motor Datasheet
Parameter	Value

Why This Motor Fits Compressor and Pump Duty

Steady 1460 r/min torque - matched to piston and screw compressors and to centrifugal pumps through a standard coupling.
IE3 88.6% efficiency - lower running current, lower temperature rise, lower electricity cost.
Cast iron frame, low vibration - protects bearings and mechanical seals and extends service intervals.
IP55 enclosure - safe in wet pump rooms and dusty compressor rooms.
GOST standard B3 mounting - direct replacement for ANP and AIR series motors already in use in Russia.

Typical Applications

Air compressors and screw compressors, centrifugal and screw water pumps, booster sets, irrigation and drainage pumps, fans, conveyors and general industrial machinery in Russian factories, boiler houses and municipal utilities.

Packing and Delivery

Polyfoam lined export carton or plywood case, shaft and flange protected with anti-rust film. Neutral packing and Russian language nameplate marking available for OEM buyers.

Frequently Asked Questions

Q: Is this motor IE3 or IE2?
A: It is IE3 premium efficiency, 88.6% at 4kW 4 pole, which cuts running current and winding temperature compared with IE2 motors.

Q: Can it run continuously on a compressor or pump?
A: Yes. S1 continuous duty, class F insulation and IP55 enclosure are designed for 24 hour compressor and pump operation.

Q: Do you supply 220V or 60Hz versions?
A: Windings can be made for 220V, 400V, 415V or 440V, 50Hz or 60Hz, on request.

Need a quotation for ANP100L4 4kW? Send your quantity and destination port and we will reply with price, drawing and delivery time within 24 hours.
