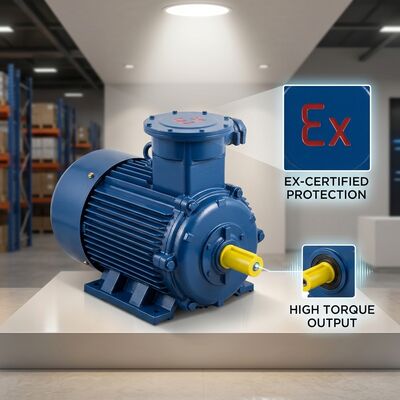

YB3-315M-4 132kW 4 Pole Flameproof Asynchronous Motor 1485rpm 380V 660V Ex d IIC T4 IP55 Heavy Duty

Brand Name:	BM
Model Number:	YB3-315M-4
MOQ:	1 Piece
Price:	USD 3520 - 4250 / Piece
Packaging Details:	Fumigated plywood case with shaft protection sleeve, VCI film and shock proof foam
Payment Terms:	T/T,L/C at sight,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ATEX 2014/34/EU, CNEx, CE, ISO 9001:2015

Frame Size:

Rated Power:

132 KW / 180 HP

Poles:

Rated Speed:

1485 R/min

Rated Voltage:

380 V / 660 V

Rated Frequency:

50 Hz

Rated Current:

238 A At 380 V

Efficiency:

95.2 % (IE3)

Power Factor:

Insulation Class:

Class F (155 C)

Protection Degree:

Cooling Method:

IC411 Totally Enclosed Fan Cooled

Duty:

S1 Continuous

Mounting Type:

IM B3 Foot Mounted

Explosion Protection:

Ex D IIC T4 Gb

Temperature Sensor:

3 X PT100 + PTC Thermistor

Bearing (DE / NDE):

6317 C3 / 6317 C3

Weight:

920 Kg

Supply Ability:

350 Pieces per Month

Highlight:

132kW flameproof asynchronous motor

4 pole 1485rpm explosion proof motor

380V 660V Ex d IIC T4 motor

Product Description

YB3-315M-4 132 kW 4 Pole Flameproof Asynchronous Motor

The BM YB3-315M-4 completes our four pole flameproof range at 132 kW. Built on the 315M cast iron frame with an Ex d IIC T4 Gb enclosure, it drives large pumps, compressors and conveyors in Zone 1 and Zone 2 areas while the IE3 winding keeps efficiency at 95.2 percent on continuous duty.

Key Features

132 kW, 4 pole, 1485 r/min, the top rating of the 55 to 132 kW four pole range
Ex d IIC T4 Gb flameproof cast iron enclosure certified to ATEX 2014/34/EU
IE3 efficiency (95.2 %) reduces power cost on high load factor duty
IP55 protection with IC411 fan cooling for outdoor and dusty installation
3 x PT100 winding sensors plus PTC thermistor for temperature monitoring
Class F insulation with Class B temperature rise, 20 K thermal margin
380 V / 660 V dual voltage winding, Y-Δ start supported
B5 flange, space heater and stainless steel nameplate available on request

Technical Parameters

Parameter	Specification
Frame Size	315M
Rated Power	132 kW / 180 HP
Number of Poles	4
Rated Speed	1485 r/min
Rated Frequency	50 Hz
Rated Voltage	380 V / 660 V
Rated Current	238 A (380 V)
Efficiency	95.2 % (IE3)
Power Factor	0.89
Insulation Class	Class F (155 °C)
Temperature Rise	Class B (80 K)
Protection Degree	IP55
Cooling Method	IC411, totally enclosed fan cooled
Duty / Connection	S1 continuous / Y-Δ start
Explosion Protection	Ex d IIC T4 Gb
Temperature Sensor	3 x PT100 + PTC thermistor
Bearing (DE / NDE)	6317 C3 / 6317 C3
Terminal Box	IP55, 2 cable entries, 6 terminals
Approximate Weight	920 kg

YB3 Series 2 Pole Reference

Frame Size	Poles	Rated Power	Speed (r/min)	Current at 380 V (A)
YB3-280M-2	2	90 kW	2980	164
YB3-315S-2	2	110 kW	2980	199
YB3-315M-2	2	132 kW	2980	238
YB3-355M-2	2	160 kW	2980	288

YB3 Series 4 Pole Reference

Frame Size	Poles	Rated Power	Speed (r/min)	Current at 380 V (A)
YB3-250M-4	4	55 kW	1480	102
YB3-280S-4	4	75 kW	1480	139
YB3-280M-4	4	90 kW	1480	164
YB3-315S-4	4	110 kW	1485	199
YB3-315M-4	4	132 kW	1485	238

YB3 Series 6 Pole Reference

Frame Size	Poles	Rated Power	Speed (r/min)	Current at 380 V (A)
YB3-315M-6	6	90 kW	985	164
YB3-355M-6	6	110 kW	985	199
YB3-355L-6	6	132 kW	985	245
YB3-400M-6	6	160 kW	985	292

Typical Applications

Refineries, petrochemical and gas processing plants, coal preparation and mining conveyors, cement and steel mills, water treatment blowers, grain and chemical plants and other Zone 1 / Zone 2 hazardous areas requiring certified explosion proof drive equipment.

FAQ

Q: Can one power rating be supplied in 2, 4 and 6 pole versions?
A: Yes. 132 kW is available as YB3-315M-2 at 2980 r/min, YB3-315M-4 at 1485 r/min and YB3-355L-6 at 985 r/min, all with the same Ex d IIC T4 Gb approval.

Q: How do I choose the number of poles?
A: Choose by required shaft speed: 2 pole for fans and centrifugal pumps, 4 pole for general pumps and conveyors, 6 pole for ball mills, crushers and screw conveyors.

Q: Are the mounting dimensions interchangeable with old YB2 or YBX motors?
A: Yes. IEC frame dimensions follow the standard Y series footprint, so direct replacement normally needs no base modification.

Q: What documents are supplied?
A: ATEX certificate copy, CNEx certificate, routine test report, outline drawing and terminal box layout are issued with every shipment.

Contact Us

Tell us the required power, pole number and mounting type. Our engineers confirm the frame selection, price and delivery schedule within 24 hours.
