YB3-315S-4 110kW 4 Pole Flameproof Motor 1485rpm IE3 Three Phase Ex d IIC T4 IP55 with Double Terminal Box

Brand Name:	BM
Model Number:	YB3-315S-4
MOQ:	1 Piece
Price:	USD 3180 - 3860 / Piece
Packaging Details:	Fumigated plywood case with shaft protection sleeve, VCI film and shock proof foam
Payment Terms:	T/T,L/C at sight,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ATEX 2014/34/EU, CNEx, CE, ISO 9001:2015

Frame Size:

Rated Power:

110 KW / 150 HP

Poles:

Rated Speed:

1485 R/min

Rated Voltage:

380 V / 660 V

Rated Frequency:

50 Hz

Rated Current:

199 A At 380 V

Efficiency:

95.0 % (IE3)

Power Factor:

Insulation Class:

Class F (155 C)

Temperature Rise:

Class B (80 K)

Protection Degree:

Cooling Method:

IC411 Totally Enclosed Fan Cooled

Duty:

S1 Continuous

Mounting Type:

IM B3 Foot Mounted

Explosion Protection:

Ex D IIC T4 Gb

Terminal Box:

Double Terminal Box, IP55

Temperature Sensor:

3 X PT100 + PTC Thermistor

Weight:

875 Kg

Supply Ability:

400 Pieces per Month

Highlight:

110kW flameproof motor IE3

4 pole 1485rpm Ex d motor

IP55 three phase explosion proof motor

Product Description

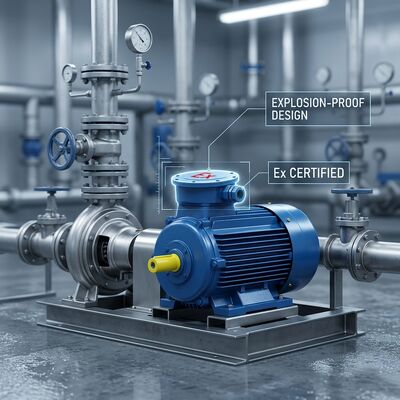

YB3-315S-4 110 kW 4 Pole Flameproof Motor

The BM YB3-315S-4 is a 110 kW, 4 pole flameproof motor built on the 315S cast iron frame for compressor, blower and large pump drives. A double terminal box separates the power terminals from the control and PTC wiring, which simplifies cabling on skid mounted packages, while the IE3 winding and Ex d IIC T4 Gb enclosure keep efficiency and safety at the level required in Zone 1 gas atmospheres.

Key Features

110 kW, 4 pole, 1485 r/min, S1 continuous duty for compressor and blower loads
Double terminal box separates power and control wiring for skid packages
IE3 efficiency (95.0 %) reduces operating cost at high load factor
Ex d IIC T4 Gb flameproof enclosure certified to ATEX 2014/34/EU and CNEx
IP55 cast iron 315S frame with IC411 cooling for outdoor installation
3 x PT100 winding sensors plus PTC thermistor for temperature monitoring
Class F insulation with Class B temperature rise, 20 K thermal margin
B5 flange, space heater and stainless steel nameplate available on request

Technical Parameters

Parameter	Specification
Frame Size	315S
Rated Power	110 kW / 150 HP
Number of Poles	4
Rated Speed	1485 r/min
Rated Frequency	50 Hz
Rated Voltage	380 V / 660 V
Rated Current	199 A (380 V)
Efficiency	95.0 % (IE3)
Power Factor	0.89
Insulation Class	Class F (155 °C)
Temperature Rise	Class B (80 K)
Protection Degree	IP55
Cooling Method	IC411, totally enclosed fan cooled
Duty / Connection	S1 continuous / Y-Δ start
Explosion Protection	Ex d IIC T4 Gb
Terminal Box	Double terminal box, IP55
Temperature Sensor	3 x PT100 + PTC thermistor
Bearing (DE / NDE)	6317 C3 / 6317 C3
Approximate Weight	875 kg

Outline drawing, terminal box layout and ATEX certificate copy are issued with every quotation.

YB3 Series 4 Pole Quick Reference

Frame Size	Poles	Rated Power	Speed (r/min)	Current at 380 V (A)
YB3-250M-4	4	55 kW	1480	102
YB3-280S-4	4	75 kW	1480	139
YB3-280M-4	4	90 kW	1480	164
YB3-315S-4	4	110 kW	1485	199
YB3-315M-4	4	132 kW	1485	238

Typical Applications

Oil and gas pumping stations, petrochemical process lines, coal mining conveyors, cement and steel plants, grain processing, chemical and pharmaceutical workshops and other Zone 1 / Zone 2 hazardous areas that require certified explosion proof drive equipment.

FAQ

Q: Can you supply the complete 4 pole power range?
A: Yes. Our YB3 flameproof range covers 55 kW, 75 kW, 90 kW, 110 kW and 132 kW at 4 pole from stock or short production runs.

Q: Are the mounting dimensions interchangeable with old YB2 or YBX motors?
A: Yes. IEC frame dimensions follow the standard Y series footprint, so the motor usually replaces an ageing unit without base modification.

Q: What certificates come with the motor?
A: ATEX 2014/34/EU certificate copy, CNEx certificate, routine test report and outline drawing are supplied with every shipment.

Q: What is your lead time?
A: 15 to 25 working days after deposit, depending on power rating and voltage configuration.

Contact Us

Send us the required power, voltage and mounting type. Our engineers confirm the frame selection, price and delivery schedule within 24 hours.
