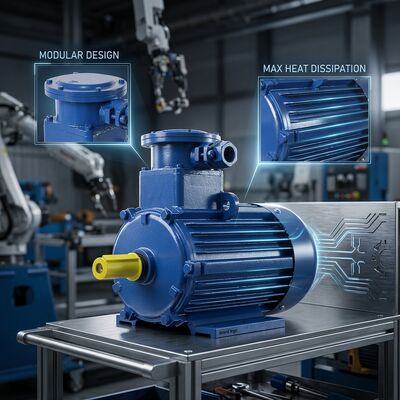

YB3 75kW 4 Pole Explosion Proof Motor 1500rpm 400V IE3 Three Phase Induction Motor with B5 Flange

Brand Name:	BM
Model Number:	YB3-280S-4 (B5)
MOQ:	1 Piece
Price:	USD 2280 - 2790 / Piece
Packaging Details:	Plywood case with flange protection cover, moisture proof film and shock proof foam
Payment Terms:	T/T,L/C at sight,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ATEX, CE, ISO 9001:2015, CNEx

Frame Size:

Rated Power:

75 KW / 100 HP

Poles:

Rated Speed:

1500 R/min

Rated Voltage:

400 V / 690 V

Rated Frequency:

50 Hz

Rated Current:

132 A At 400 V

Efficiency:

IE3 (94.4 %)

Power Factor:

Insulation Class:

Class F (155 C)

Protection Degree:

Cooling Method:

IC411 Totally Enclosed Fan Cooled

Duty:

S1 Continuous

Mounting Type:

IM B5 Flange Mounted

Flange Size:

FF600, 4 Hole Flange

Explosion Protection:

Ex D IIC T4 Gb

Explosionproof Certificate:

ATEX 2014/34/EU, CNEx

Terminal Box:

IP55, 6 Terminals, 2 Cable Entries

Weight:

632 Kg

Supply Ability:

600 Pieces per Month

Highlight:

75kW explosion proof motor

4 pole 1500rpm induction motor

IE3 three phase motor B5 flange

Product Description

YB3 75 kW 4 Pole Explosion Proof Motor with B5 Flange

This YB3 series 75 kW, 4 pole explosion proof motor runs at 1500 r/min on a 400 V / 690 V supply and is supplied with an IM B5 flange so it can be bolted directly to close coupled pumps, gear units and skid mounted process equipment. The IE3 efficiency winding and Ex d IIC T4 Gb flameproof housing make it a drop-in replacement for ageing Ex motors in refineries, fuel depots and chemical plants.

Key Features

IM B5 flange mounting (FF600, 4 hole) for direct coupling to pumps and gear units
IE3 premium efficiency reduces power consumption and meets EU Ecodesign requirements
Ex d IIC T4 Gb flameproof enclosure certified to ATEX 2014/34/EU and CNEx
1500 r/min synchronous speed / 1480 r/min rated speed at 50 Hz
IP55 sealing with dual lip shaft seal keeps out dust, spray and condensate
Class F insulation, Class B temperature rise, 20 K thermal margin
Cast iron frame, rotor dynamically balanced to G2.5 for low vibration
Optional PTC thermistor, space heater and stainless steel nameplate

Technical Parameters

Parameter	Specification
Frame Size	280S
Rated Power	75 kW / 100 HP
Number of Poles	4 Pole
Rated Speed	1500 r/min (synchronous)
Rated Frequency	50 Hz
Rated Voltage	400 V / 690 V
Rated Current	132 A (400 V)
Efficiency	94.4 % (IE3 level)
Power Factor	0.88
Insulation Class	Class F (155 °C)
Temperature Rise	Class B (80 K)
Protection Degree	IP55
Cooling Method	IC411, totally enclosed fan cooled
Duty / Connection	S1 continuous / Y-Δ start
Explosion Protection	Ex d IIC T4 Gb
Ambient Temperature	-20 °C to +40 °C
Altitude	Up to 1000 m
Bearing (DE / NDE)	6316 C3 / 6316 C3
Terminal Box	IP55, 2 cable entries, 6 terminals
Approximate Weight	632 kg
Mounting Type	IM B5 Flange Mounted
Flange	FF600, 4 hole flange

Flange drawing and terminal box position drawing are issued with every quotation. Special flange drilling to customer pattern is available.

YB3 Series 4 Pole Quick Reference

Frame Size	Poles	Rated Power	Speed (r/min)	Current at 380 V (A)
YB3-250M-4	4	55 kW	1480	102
YB3-280S-4	4	75 kW	1480	139
YB3-280M-4	4	90 kW	1480	164
YB3-315S-4	4	110 kW	1485	199
YB3-315M-4	4	132 kW	1485	238

Typical Applications

Petrochemical plants, oil and gas pumping stations, coal mining conveyors, grain and flour mills, chemical processing lines, paint and solvent workshops, pharmaceutical production areas and other Zone 1 / Zone 2 hazardous locations requiring explosion proof drive equipment.

FAQ

Q: Are you a factory or a trading company?
A: We are a motor factory with more than 20 years of explosion proof motor manufacturing experience.

Q: What is your warranty?
A: One year warranty. Any part damaged within the warranty period is replaced free of charge.

Q: Do you offer OEM / ODM service?
A: Yes. Nameplate, colour and terminal box layout can be customised to your project requirements.

Q: What is your lead time?
A: Usually 15 to 25 working days after deposit, depending on quantity and voltage configuration.

Contact Us

Tell us your voltage, mounting type and hazardous area classification. Our engineers will confirm the motor selection, price and delivery schedule within 24 hours.
