YB3-280S-4 75kW 4 Pole Flameproof Asynchronous Motor 380V 660V Ex d IIC T4 IP55 B3 Foot Mounted

Brand Name:	BM
Model Number:	YB3-280S-4
MOQ:	1 Piece
Price:	USD 2150 - 2680 / Piece
Packaging Details:	Plywood case with moisture proof film and shock proof foam, export standard packing
Payment Terms:	T/T,L/C at sight,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ATEX, CE, ISO 9001:2015, CNEx

Frame Size:

Rated Power:

75 KW / 100 HP

Poles:

Rated Speed:

1480 R/min

Rated Voltage:

380 V / 660 V

Rated Frequency:

50 Hz

Rated Current:

139 A At 380 V

Efficiency:

94.4 % (IE3 Level)

Power Factor:

Insulation Class:

Class F (155 C)

Protection Degree:

Cooling Method:

IC411 Totally Enclosed Fan Cooled

Duty:

S1 Continuous

Mounting Type:

IM B3 Foot Mounted

Explosion Protection:

Ex D IIC T4 Gb

Ambient Temperature:

-20 C To +40 C

Terminal Box:

IP55, 2 Cable Entries

Weight:

618 Kg

Supply Ability:

800 Pieces per Month

Highlight:

75kW flameproof asynchronous motor

4 pole Ex d IIC motor

380V 660V IP55 explosion proof motor

Product Description

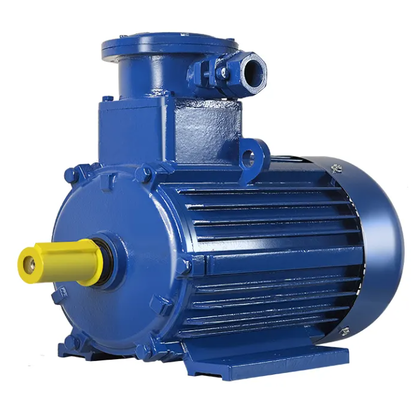

YB3-280S-4 75 kW 4 Pole Flameproof Asynchronous Motor

The BM YB3-280S-4 is a 75 kW, 4 pole three phase asynchronous motor built in a cast iron flameproof enclosure for Zone 1 and Zone 2 hazardous areas. The Ex d IIC T4 Gb design contains any internal spark or flame inside the explosion proof housing, so the motor can drive pumps, fans and compressors in petrochemical plants, refineries and coal preparation lines without becoming an ignition source.

Key Features

Ex d IIC T4 Gb flameproof enclosure, suitable for gases in groups IIA, IIB and IIC including hydrogen and acetylene
75 kW continuous S1 duty with 1480 r/min rated speed at 50 Hz
IE3 level efficiency (94.4 %) lowers running cost over a 10 year service life

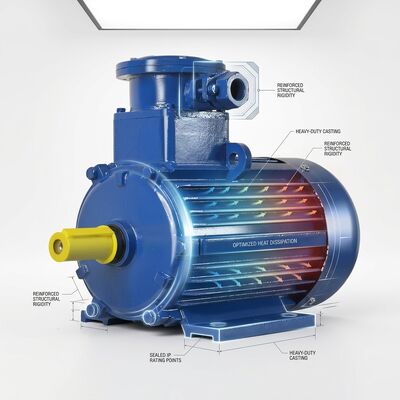

IP55 cast iron frame with IC411 totally enclosed fan cooling for dusty and humid workshops
Class F insulation with Class B temperature rise gives 20 K thermal margin
B3 foot mounted design fits standard IEC pump, fan and gearbox bases
Wide voltage 380 V / 660 V winding, Y-Δ start supported
PTC thermistors and anti-condensation heaters available on request

Technical Parameters

Parameter	Specification
Frame Size	280S
Rated Power	75 kW / 100 HP
Number of Poles	4 Pole
Rated Speed	1480 r/min
Rated Frequency	50 Hz
Rated Voltage	380 V / 660 V
Rated Current	139 A (380 V)
Efficiency	94.4 % (IE3 level)
Power Factor	0.88
Insulation Class	Class F (155 °C)
Temperature Rise	Class B (80 K)
Protection Degree	IP55
Cooling Method	IC411, totally enclosed fan cooled
Duty / Connection	S1 continuous / Y-Δ start
Explosion Protection	Ex d IIC T4 Gb
Ambient Temperature	-20 °C to +40 °C
Altitude	Up to 1000 m
Bearing (DE / NDE)	6316 C3 / 6316 C3
Terminal Box	IP55, 2 cable entries, 6 terminals
Approximate Weight	618 kg
Mounting Type	IM B3 Foot Mounted

YB3 Series 4 Pole Quick Reference

Frame Size	Poles	Rated Power	Speed (r/min)	Current at 380 V (A)
YB3-250M-4	4	55 kW	1480	102
YB3-280S-4	4	75 kW	1480	139
YB3-280M-4	4	90 kW	1480	164
YB3-315S-4	4	110 kW	1485	199
YB3-315M-4	4	132 kW	1485	238

Typical Applications

Petrochemical plants, oil and gas pumping stations, coal mining conveyors, grain and flour mills, chemical processing lines, paint and solvent workshops, pharmaceutical production areas and other Zone 1 / Zone 2 hazardous locations requiring explosion proof drive equipment.

FAQ

Q: Are you a factory or a trading company?
A: We are a motor factory with more than 20 years of explosion proof motor manufacturing experience.

Q: What is your warranty?
A: One year warranty. Any part damaged within the warranty period is replaced free of charge.

Q: Do you offer OEM / ODM service?
A: Yes. Nameplate, colour and terminal box layout can be customised to your project requirements.

Q: What is your lead time?
A: Usually 15 to 25 working days after deposit, depending on quantity and voltage configuration.

Contact Us

Tell us your voltage, mounting type and hazardous area classification. Our engineers will confirm the motor selection, price and delivery schedule within 24 hours.
