Premium Efficiency AC Motor 5HP 60Hz Low Noise 3600RPM 460V TEFC NEMA 182T USA Canada

Brand Name:	BIMO
Model Number:	NX5-2-182T
MOQ:	5 Units
Price:	USD 175-255 / Unit
Packaging Details:	Export-grade wooden case with shock-proof foam and seaworthy packing
Payment Terms:	T/T,L/C,PayPal,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, China

Certification:

UL Listed, CSA Certified, ISO 9001:2015

Output Power:

5 HP / 3.7 KW

Frequency:

60 Hz

Voltage:

230/460 V

Phase:

Three Phase

Number Of Poles:

Synchronous Speed:

3600 RPM

Full Load Speed:

3500 RPM

Frame Size:

Enclosure:

TEFC (IP55)

Efficiency Class:

NEMA Premium (IE3)

Insulation Class:

Class F

Duty:

Continuous S1

Mounting:

Rigid Base Or C-Face

Noise Level:

70 DB(A) Or Less

Service Factor:

Ambient Temperature:

Rotation:

Bi-directional

Certification:

UL Listed / CSA Certified

Supply Ability:

3000 Units per Month

Highlight:

NEMA Premium 5HP 2Pole

Low Noise 3600RPM Motor

TEFC 460V AC Motor

Product Description

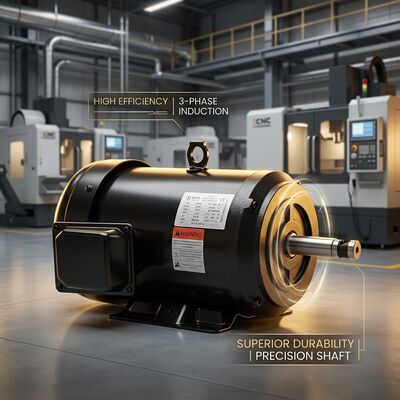

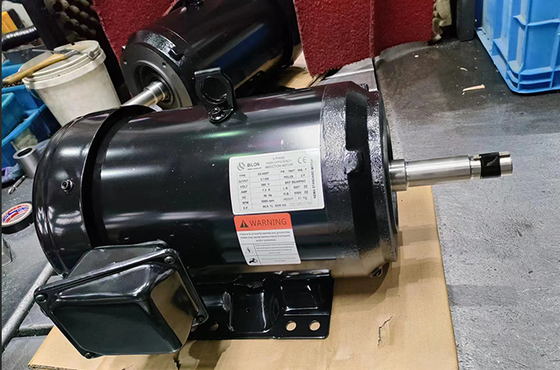

5HP Premium Efficiency AC Motor - NEMA Standard Motor (2-Pole)

The BIMO 5 HP Premium Efficiency AC Motor (two-pole) is engineered to NEMA MG1 standards for the North American market. Running at 60 Hz with a three-phase 230/460 V supply, it offers high-speed, quiet and reliable operation (70 dB(A) or less) with NEMA Premium efficiency, ideal for pumps, cooling tower fans and blowers in the United States and Canada.

Key Features

NEMA Premium efficiency (IE3 equivalent), meets NEMA MG1-2014 and EISA requirements
Two-pole high-speed design, 3600 RPM synchronous, 3500 RPM full load
Low noise operation, 70 dB(A) or less at 1 m
60 Hz, three-phase 230/460 V dual voltage
TEFC enclosure, IP55 protection, Class F insulation
Cast-iron frame 182T, rigid base with optional C-face
UL Listed and CSA Certified for USA and Canada installations

Technical Specifications

Output Power	5 HP / 3.7 kW
Frequency	60 Hz
Voltage	230/460 V
Phase	Three Phase
Number of Poles	2
Full Load Speed	3500 RPM
Frame Size	182T
Enclosure	TEFC (IP55)
Efficiency Class	NEMA Premium (IE3)
Insulation Class	Class F
Duty	Continuous S1 / S.F. 1.15
Mounting	Rigid Base or C-Face
Noise Level	70 dB(A) or less
Ambient Temperature	40 C
Rotation	Bi-directional
Certification	UL Listed / CSA Certified

Typical Applications

Centrifugal and booster pumps
Cooling tower fans and blowers
HVAC air handling units
High-speed compressors
General industrial machinery

Certifications & Compliance

NEMA Premium efficiency, NEMA MG1-2014 compliant
UL Listed for the United States
CSA Certified for Canada
ISO 9001:2015 quality system
RoHS compliant

Packaging & Delivery

Each motor is packed in an export-grade wooden case with shock-proof foam and seaworthy protection. Lead time is 15-25 working days after deposit; samples can be shipped within 7 days.
