Premium Efficiency AC Motor 5HP 60Hz Low Noise Three Phase 1750RPM 230 460V TEFC 184T

Brand Name:	BIMO
Model Number:	NX5-4-184T
MOQ:	5 Units
Price:	USD 185-265 / Unit
Packaging Details:	Export-grade wooden case with shock-proof foam and seaworthy packing
Payment Terms:	T/T,L/C,PayPal,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, China

Certification:

UL Listed, CSA Certified, ISO 9001:2015

Output Power:

5 HP / 3.7 KW

Frequency:

60 Hz

Voltage:

230/460 V

Phase:

Three Phase

Number Of Poles:

Synchronous Speed:

1800 RPM

Full Load Speed:

1750 RPM

Frame Size:

Enclosure:

TEFC (IP55)

Efficiency Class:

NEMA Premium (IE3)

Insulation Class:

Class F

Duty:

Continuous S1

Mounting:

Foot Mounted (B3) Or C-Face

Noise Level:

68 DB(A) Or Less

Service Factor:

Ambient Temperature:

Rotation:

Reversible

Certification:

UL Listed / CSA Certified

Supply Ability:

3000 Units per Month

Highlight:

NEMA Premium Efficiency 5HP

Low Noise 60Hz Operation

TEFC Three Phase Motor

Product Description

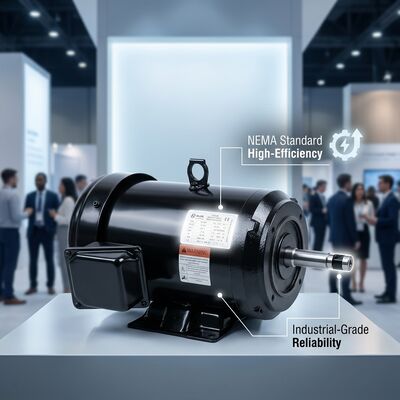

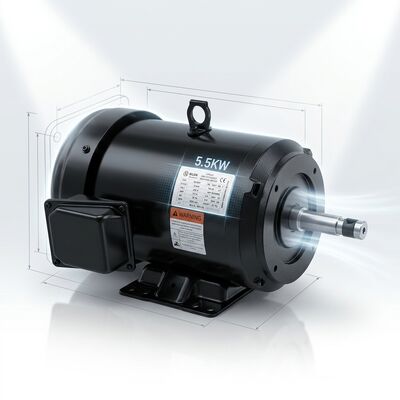

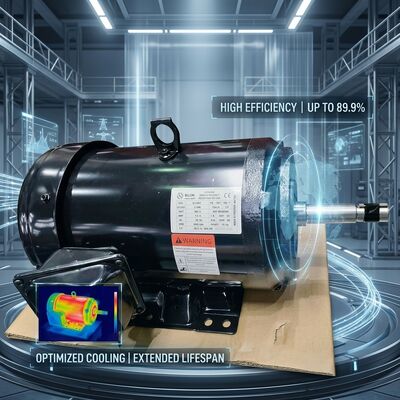

5HP Premium Efficiency AC Motor - NEMA Standard Motor

The BIMO 5 HP Premium Efficiency AC Motor is built to NEMA MG1 standards for the North American market. Operating at 60 Hz with a three-phase 230/460 V supply, it delivers quiet, continuous-duty performance (68 dB(A) or less) with NEMA Premium efficiency, lowering energy costs for pumps, fans, compressors and conveyors across the United States and Canada.

Key Features

NEMA Premium efficiency (IE3 equivalent), meets NEMA MG1-2014 and EISA requirements
Low noise operation, 68 dB(A) or less at 1 m
60 Hz, three-phase 230/460 V dual voltage, 1750 RPM (4-pole)
TEFC enclosure, IP55 protection, Class F insulation
Cast-iron frame 184T, foot mounted with optional C-face
UL Listed and CSA Certified for USA and Canada installations
Continuous duty S1, 40 C ambient, reversible rotation

Technical Specifications

Output Power	5 HP / 3.7 kW
Frequency	60 Hz
Voltage	230/460 V
Phase	Three Phase
Number of Poles	4
Full Load Speed	1750 RPM
Frame Size	184T
Enclosure	TEFC (IP55)
Efficiency Class	NEMA Premium (IE3)
Insulation Class	Class F
Duty	Continuous S1 / S.F. 1.15
Mounting	Foot Mounted (B3) or C-Face
Noise Level	68 dB(A) or less
Ambient Temperature	40 C
Rotation	Reversible
Certification	UL Listed / CSA Certified

Typical Applications

Centrifugal and process pumps
Ventilation and cooling fans
Air compressors
Conveyors and material handling
Machine tools and general industrial drives

Certifications & Compliance

NEMA Premium efficiency, NEMA MG1-2014 compliant
UL Listed for the United States
CSA Certified for Canada
ISO 9001:2015 quality system
RoHS compliant

Packaging & Delivery

Each motor is packed in an export-grade wooden case with shock-proof foam and seaworthy protection. Lead time is 15-25 working days after deposit; samples can be shipped within 7 days.
