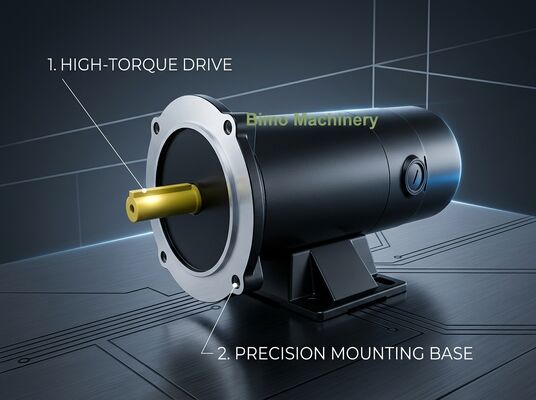

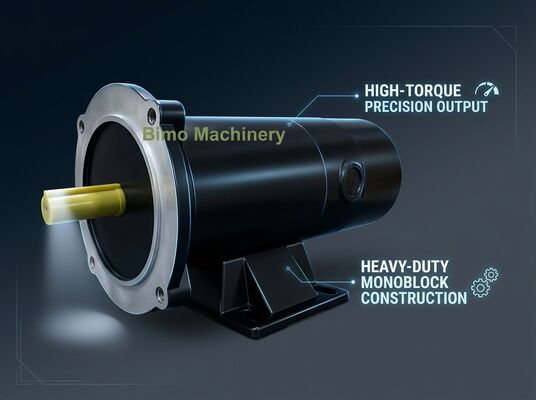

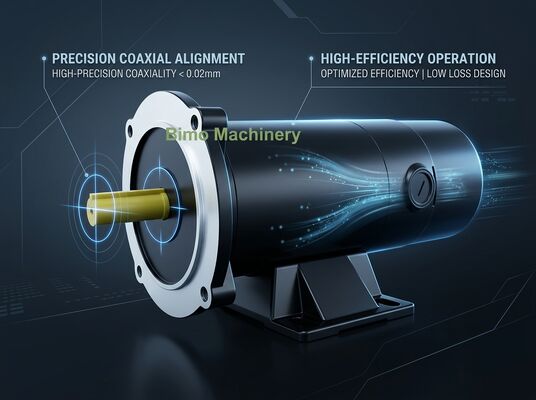

NEMA 56C 24V TEFC Brushed Permanent Magnet DC Motor 3/4HP 1750RPM IP54 Industrial Grade

Brand Name:	BM
Model Number:	56C-PMDC-24V-34HP-1750
MOQ:	10 Pieces
Price:	USD 38-165 / Piece
Packaging Details:	BM branded carton with shock-proof foam, export-grade corrugated carton
Payment Terms:	T/T,L/C,PayPal,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, China

Certification:

CE, ISO 9001:2015

Motor Type:

Permanent Magnet DC (PMDC)

Frame Size:

NEMA 56C

Voltage:

24V DC

Power:

3/4 HP (0.55 KW)

Speed:

1750 RPM

Construction:

Brushed, Permanent Magnet

Enclosure:

TEFC (Totally Enclosed Fan Cooled)

Insulation Class:

Class F

Protection Rating:

Duty Cycle:

Continuous (S1)

Mounting:

NEMA 56C Flange Mount

Shaft Diameter:

5/8 Inch Keyed Shaft

Ambient Temperature:

Efficiency Class:

Application:

Boat, Pump, Conveyor, Packing Machine, Machine Tool

Supply Ability:

5000 Pieces per Month

Highlight:

NEMA 56C 24V PMDC Motor

TEFC Brushed Permanent Magnet Motor

3/4HP 1750RPM DC Motor

Product Description

NEMA 56C 24V TEFC Brushed Permanent Magnet DC Motor 3/4 HP 1750 RPM 24V DC

This NEMA 56C PMDC electric motor is a 24V brushed permanent magnet DC motor delivering 3/4 HP at 1750 RPM. With a TEFC (Totally Enclosed Fan Cooled) housing and IP54 protection, it is engineered for reliable continuous duty in demanding industrial and marine applications. Model: 56C-PMDC-24V-34HP-1750.

Key Features

Permanent magnet brushed design for high starting torque and smooth speed control
TEFC enclosure with IP54 protection against dust and water splashes
Class F insulation for high temperature endurance
NEMA 56C flange mounting for easy drop-in replacement
Continuous S1 duty with IE2 efficiency

Technical Specifications

Parameter	Value
Motor Type	Permanent Magnet DC (PMDC)
Frame Size	NEMA 56C
Voltage	24V DC
Power	3/4 HP
Speed	1750 RPM
Construction	Brushed, Permanent Magnet
Enclosure	TEFC (Totally Enclosed Fan Cooled)
Insulation Class	Class F
Protection Rating	IP54
Duty Cycle	Continuous (S1)
Mounting	NEMA 56C Flange Mount
Shaft Diameter	5/8 inch Keyed Shaft
Ambient Temperature	40 C
Efficiency Class	IE2

Applications

Boat and marine equipment
Hydraulic power units and pumps
Conveyors and working lines
Packing machines and machine tools
Gym and automatic control systems

Why Choose Us

20 years of motor manufacturing experience, OEM/ODM service available, one year warranty, and products exported to more than 50 countries. Factory direct supply.
