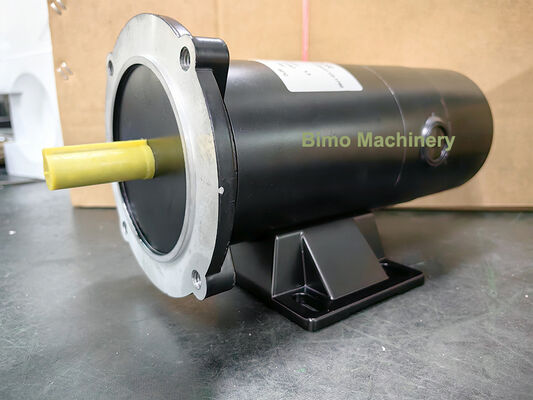

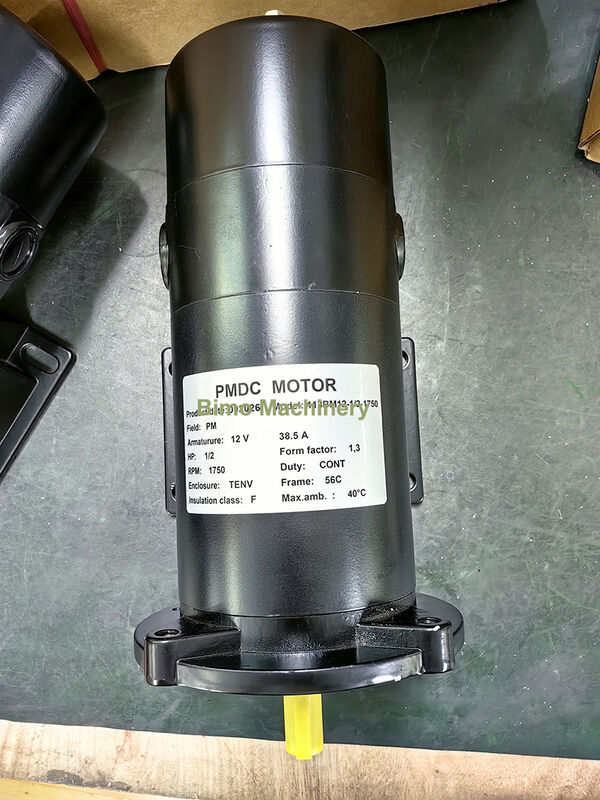

Professional Manufacturer NEMA Frame 56C, TEFC/TENV 12V 3/4 hp Brushless DC Motor

All Category

PMDC Motor

Mrs. Anny Song

motorexport@bimo-idea.com

0086-18802094629

Contact Now

Professional Manufacturer NEMA Frame 56C, TEFC/TENV 12V 3/4 hp Brushless DC Motor

Brand Name:	BM
Model Number:	PMDC
MOQ:	10 pcs
Price:	Negotiation
Packaging Details:	Cartons/pallet
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Name:

TENV DC Motor

Speed(RPM):

1800rpm

Insulation Class:

Class F (155°C)

Power:

3/4hp

Rated Voltage:

Frame:

Supply Ability:

10000pcs per month

Product Description

Professional Manufacturer NEMA Frame 56C, TEFC/TENV 12V 3/4 hp Brushless DC Motor

1, This is a high-performance PMDC permanent magnet brushed DC motor customized for mechanical bull amusement riding equipment, standard NEMA 56C frame size, rated power 1HP, working voltage 90VDC, two speed options 1750RPM and 1800RPM for different bull strength adjustment demands.

2, Adopting TEFC Totally Enclosed Fan Cooled full closed housing design, the motor can block venue dust, foam, debris and slight water splashes, effectively avoiding coil short circuit and burnout caused by long-term operation in amusement environment. Different from series-wound DC motors, rare earth permanent magnet rotor provides stable constant low-speed torque, perfectly adapt to the frequent start-stop, forward and reverse reciprocating shaking of mechanical bull.

3, PMDC 90V 1HP TEFC permanent magnet DC motor, NEMA 56C frame, 1750RPM / 1800RPM optional speed, fully enclosed fan cooled, stable constant torque, shock resistant, frequent CW/CCW rotation, dedicated PMDC drive motor for mechanical bull riding amusement machine, compatible with PWM speed controller, low noise, long service life, rodeo bull replacement spare motor, CE certified, OEM & ODM available.

Power(HP)	Speed(RPM)	Arm Volt	NEMA FRAME	ENCL.	Curret(Amp.)	Torque(In.Ibs)	App.Weights(Ibs)
1/4	1750	12	56C	TEFC	21.0	9	21
1/4	1750	24	56C	TEFC	10.5	9	21
1/3	1750	12	56C	TEFC	27.0	12	23
1/3	1750	24	56C	TEFC	13.5	12	23
1/2	1750	12	56C	TEFC	39.0	18	25
1/2	1750	24	56C	TEFC	20.0	18	25
3/4	1750	12	56C	TEFC	63.6	27	30
3/4	1750	24	56C	TEFC	31.8	27	30
3/4	3600	12	56C	TEFC	63.6	13	23
3/4	3600	24	56C	TEFC	31.8	13	23
1	1750	12	56C	TEFC	80.0	36	32
1	1750	24	56C	TEFC	40.0	36	32
1	3600	12	56C	TEFC	80.0	17.6	25
1	3600	24	56C	TEFC	40.0	17.6	25
1.5	1750	24	56C	TEFC	60.0	54.3	43
1.5	3600	24	56C	TEFC	60.0	26.4	30

Professional Manufacturer NEMA Frame 56C, TEFC/TENV 12V 3/4 hp Brushless DC Motor

Q: Are you Factory or Trading Company?
A: We are Factory. That has been focusing on motors and accessories for more than 20 years.

Q: What is your warranty?
A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.

Q: What kind of motor can you supply?
A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.

Q: Do you offer OEM Service?
A: Yes. We offer OEM/ODM service.

Q: What is your lead Time?
A: Usually 10 days. Precise Time depend on Qty.
