High Efficiency NEMA 145TC 1.5 HP 90 Volt Industrial PMDC Motor

Brand Name:	BM
Model Number:	PMDC
MOQ:	10 pcs
Price:	Negotiation
Packaging Details:	Cartons/pallet
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Name:

1.5HP PMDC Motor

Speed(RPM):

1750rpm

Protection:

Efficiency:

Voltage:

Frame:

145TC

Supply Ability:

10000pcs per month

Highlight:

NEMA 145TC PMDC motor

1.5 HP industrial motor

90 volt PMDC motor

Product Description

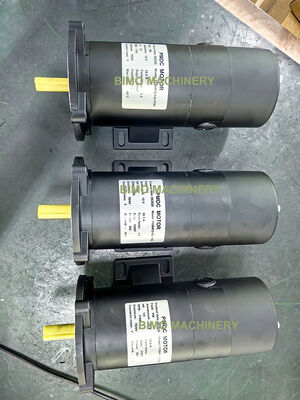

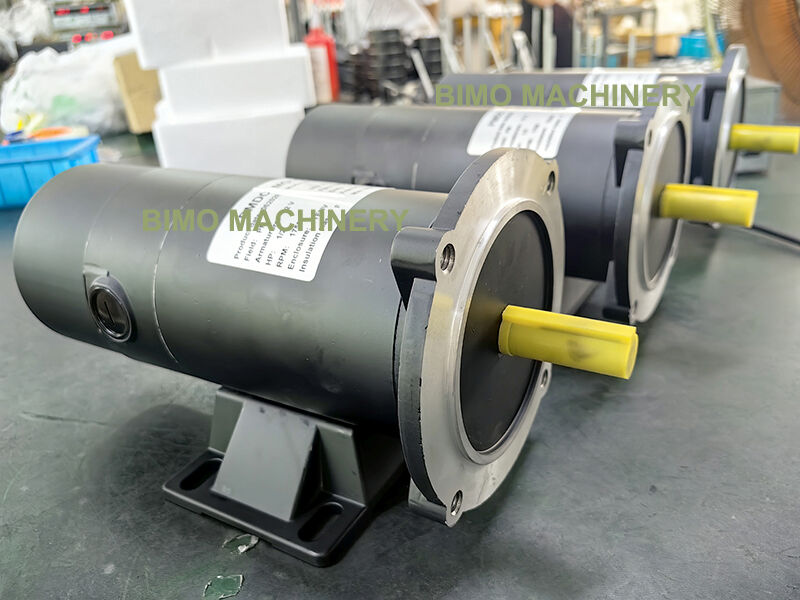

High Efficiency NEMA 145TC 1.5 HP 90 Volt Industrial PMDC Motor

1, High efficiency IP54 waterproof 1.5HP 90V permanent magnet DC motor with NEMA 145TC frame, 1750RPM constant torque brushed PMDC motor for conveyor, packaging machine, printing equipment, SCR/PWM speed control, Class F insulation, continuous S1 duty, CE certified.

2, 1.5HP 90V permanent magnet DC motor adopts NEMA standard 145TC frame with IP54 dust & splash-proof enclosure, specially designed for industrial variable speed DC drive systems with SCR and PWM controllers.

3, Equipped with Class F insulation, double shielded sealed ball bearings and rolled steel heavy-duty housing, the 145TC 90V 1.5HP DC motor supports continuous S1 duty cycle under 40℃ ambient temperature

Power (HP)	Speed (RPM)	Arm Volt	NEMA Frame	ENCL.	Current (Amp.)	Torque (In.Ibs)
1.5	1750	90	143/145	TEFC	16.0	54
1.5	1750	180	143/145	TEFC	8.0	54
1.5	2500	180	143/145	TEFC	8.0	38
1.5	3600	180	143/145	TEFC	8.0	26
2	1750	90	143/145	TEFC	19.0	72
2	1750	180	143/145	TEFC	9.5	72
2	2500	180	143/145	TEFC	9.5	50
3	1750	90	143/145	TEFC	28.0	108
3	1750	180	143/145	TEFC	14.0	108
3	2500	180	143/145	TEFC	14.0	76

High Efficiency NEMA 145TC 1.5 HP 90 Volt Industrial PMDC Motor 0

High Efficiency NEMA 145TC 1.5 HP 90 Volt Industrial PMDC Motor 3

High Efficiency NEMA 145TC 1.5 HP 90 Volt Industrial PMDC Motor 4

FAQ

Q: Are you Factory or Trading Company?
A: We are Factory. That has been focusing on motors and accessories for more than 20 years.

Q: What is your warranty?
A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.

Q: What kind of motor can you supply?
A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.

Q: Do you offer OEM Service?
A: Yes. We offer OEM/ODM service.

Q: What is your lead Time?
A: Usually 10 days. Precise Time depend on Qty.
