Export USA NEMA 56C Frame Permanent Magnet Brushed DC Motor, Multi Voltage 12V 24V 90V 180V PMDC Motor for American Industrial Machinery

All Category

PMDC Motor

Mrs. Anny Song

motorexport@bimo-idea.com

0086-18802094629

Contact Now

Export USA NEMA 56C Frame Permanent Magnet Brushed DC Motor, Multi Voltage 12V 24V 90V 180V PMDC Motor for American Industrial Machinery

Brand Name:	BM
Model Number:	PMDC
MOQ:	10 pcs
Price:	Negotiation
Packaging Details:	Cartons/pallet
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Name:

90V/180V DC MOTOR

Speed(RPM):

1800rpm

Insulation Class:

Class F (155°C)

Power:

1/2HP 1HP

Rated Voltage:

90V/180V

Frame:

Supply Ability:

10000pcs per month

Highlight:

NEMA 56C Frame PMDC Motor

Multi Voltage PMDC Motor

Industrial Machinery PMDC Motor

Product Description

Export USA NEMA 56C Frame Permanent Magnet Brushed DC Motor, Multi Voltage 12V 24V 90V 180V PMDC Motor for American Industrial Machinery

1, This NEMA 56C PMDC brushed DC motor is specially optimized for export to the United States and North American markets, strictly following official NEMA MG1 mechanical dimension standards of the US motor industry, fully interchangeable with all mainstream American brand NEMA 56C DC motors without extra modification.

2, We offer four universal DC voltage options covering low-voltage battery equipment and high-voltage industrial DC systems: 12V, 24V, 90V and 180V, matching American battery-powered transport equipment, DC power supply stations and rectified industrial power systems.

3, Equipped with high-energy permanent magnet rotor, the motor delivers high starting torque, wide constant torque speed regulation range and higher efficiency than traditional wound-field DC motors. Internal windings use full copper wire with Class F (155°C) thermal insulation, paired with double-sealed ball bearings and long-life replaceable carbon brushes, greatly reducing maintenance costs for end users in the US.

Power(HP)	Speed(RPM)	Arm Volt	NEMA FRAME	ENCL.	Curret(Amp.)	Torque(In.Ibs)	App.Weights(Ibs)
1/4	1750	12	56C	TEFC	21.0	9	21
1/4	1750	24	56C	TEFC	10.5	9	21
1/3	1750	12	56C	TEFC	27.0	12	23
1/3	1750	24	56C	TEFC	13.5	12	23
1/2	1750	12	56C	TEFC	39.0	18	25
1/2	1750	24	56C	TEFC	20.0	18	25
3/4	1750	12	56C	TEFC	63.6	27	30
3/4	1750	24	56C	TEFC	31.8	27	30
3/4	3600	12	56C	TEFC	63.6	13	23
3/4	3600	24	56C	TEFC	31.8	13	23
1	1750	12	56C	TEFC	80.0	36	32
1	1750	24	56C	TEFC	40.0	36	32
1	3600	12	56C	TEFC	80.0	17.6	25
1	3600	24	56C	TEFC	40.0	17.6	25
1.5	1750	24	56C	TEFC	60.0	54.3	43
1.5	3600	24	56C	TEFC	60.0	26.4	30

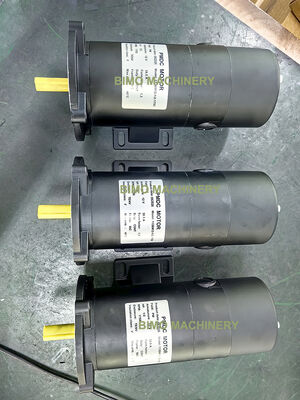

Export USA NEMA 56C Frame Permanent Magnet Brushed DC Motor, Multi Voltage 12V 24V 90V 180V PMDC Motor for American Industrial Machinery 0

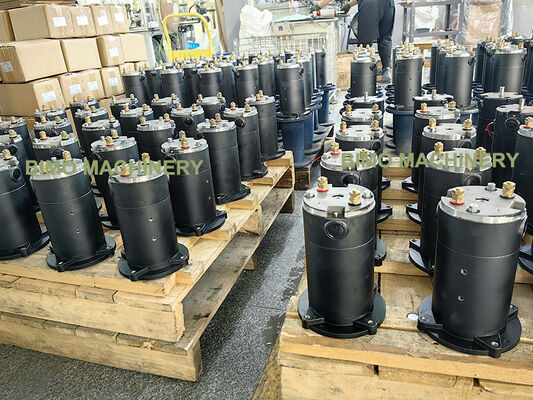

Export USA NEMA 56C Frame Permanent Magnet Brushed DC Motor, Multi Voltage 12V 24V 90V 180V PMDC Motor for American Industrial Machinery 3

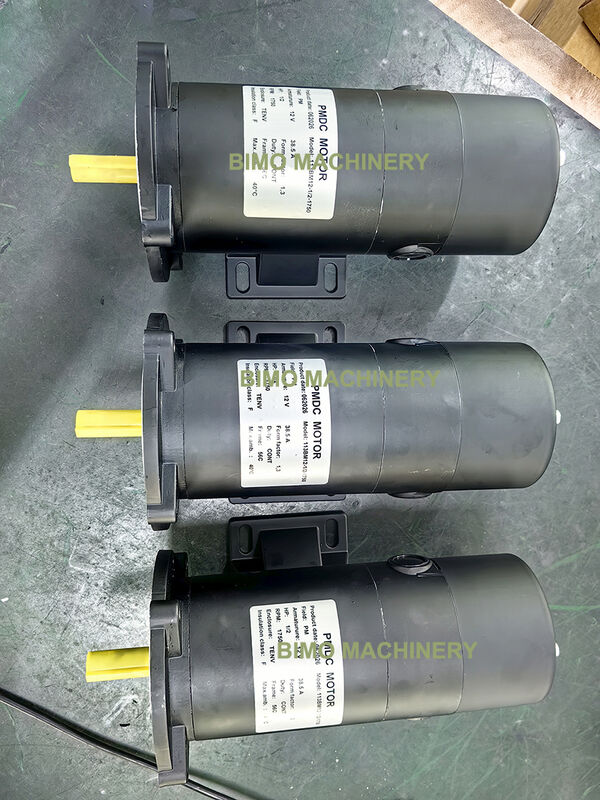

Export USA NEMA 56C Frame Permanent Magnet Brushed DC Motor, Multi Voltage 12V 24V 90V 180V PMDC Motor for American Industrial Machinery 4

FAQ

Q: Are you Factory or Trading Company?
A: We are Factory. That has been focusing on motors and accessories for more than 20 years.

Q: What is your warranty?
A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.

Q: What kind of motor can you supply?
A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.

Q: Do you offer OEM Service?
A: Yes. We offer OEM/ODM service.

Q: What is your lead Time?
A: Usually 10 days. Precise Time depend on Qty.
