PMDC Motor

1/3HP TEFC Permanent Magnet DC Motor 1750RPM 12V 24V 90V Brushed PMDC Motor

All Category

PMDC Motor

Mrs. Anny Song

motorexport@bimo-idea.com

0086-18802094629

Contact Now

1/3HP TEFC Permanent Magnet DC Motor 1750RPM 12V 24V 90V Brushed PMDC Motor

Brand Name:	BM
Model Number:	PMDC
MOQ:	10 pcs
Price:	Negotiation
Packaging Details:	Cartons/pallet
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Name:

1/3HP TEFC DC MOTOR

Speed(RPM):

1750rpm

Insulation Class:

Class F (155°C)

Power:

1/3HP

Rated Voltage:

12V/24V/90V

Frame:

Supply Ability:

10000pcs per month

Highlight:

1/3HP PMDC motor 1750RPM

12V 24V 90V brushed motor

TEFC permanent magnet DC motor

Product Description

3, 1/3HP TEFC Permanent Magnet DC Motor 1750RPM 12V 24V 90V Brushed PMDC Motor

1, 1/3HP TEFC permanent magnet DC motor (PMDC brushed motor) runs at rated 1750 RPM and supports three standard voltage specifications: 12V DC, 24V DC and 90V DC to match different power supply systems including lithium battery packs, DC power supplies and rectified industrial power.

2, With TEFC (Totally Enclosed Fan Cooled) fully sealed fan cooling structure, the internal fan provides efficient heat dissipation for long-hour continuous operation, solving overheating issues during heavy-duty S1 duty cycle. Compared with TENV non-ventilated motors, this TEFC PMDC motor has stronger load capacity and longer service life under continuous working conditions.

3, The motor core uses high-performance ferrite or rare earth permanent magnets, delivering high starting torque, wide variable speed range and higher efficiency than traditional shunt wound DC motors. Internal windings adopt pure copper wire with Class F 155°C insulation, double sealed ball bearings and wear-resistant replaceable carbon brush assembly for easy field maintenance without full motor disassembly.

Power(HP)	Speed(RPM)	Arm Volt	NEMA FRAME	ENCL.	Curret(Amp.)	Torque(In.Ibs)	App.Weights(Ibs)
1/4	1750	12	56C	TEFC	21.0	9	21
1/4	1750	24	56C	TEFC	10.5	9	21
1/3	1750	12	56C	TEFC	27.0	12	23
1/3	1750	24	56C	TEFC	13.5	12	23
1/2	1750	12	56C	TEFC	39.0	18	25
1/2	1750	24	56C	TEFC	20.0	18	25
3/4	1750	12	56C	TEFC	63.6	27	30
3/4	1750	24	56C	TEFC	31.8	27	30
3/4	3600	12	56C	TEFC	63.6	13	23
3/4	3600	24	56C	TEFC	31.8	13	23
1	1750	12	56C	TEFC	80.0	36	32
1	1750	24	56C	TEFC	40.0	36	32
1	3600	12	56C	TEFC	80.0	17.6	25
1	3600	24	56C	TEFC	40.0	17.6	25
1.5	1750	24	56C	TEFC	60.0	54.3	43
1.5	3600	24	56C	TEFC	60.0	26.4	30

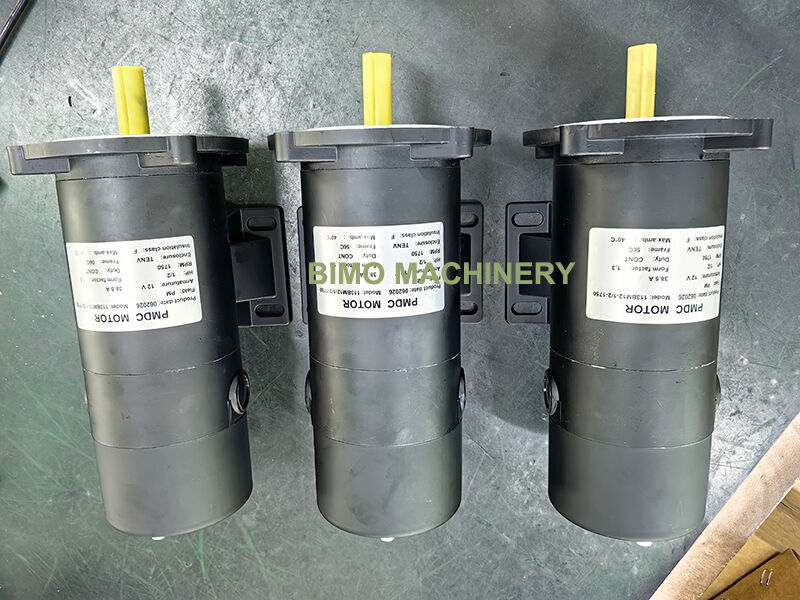

1/3HP TEFC Permanent Magnet DC Motor 1750RPM 12V 24V 90V Brushed PMDC Motor 0

1/3HP TEFC Permanent Magnet DC Motor 1750RPM 12V 24V 90V Brushed PMDC Motor 2

1/3HP TEFC Permanent Magnet DC Motor 1750RPM 12V 24V 90V Brushed PMDC Motor 3

FAQ

Q: Are you Factory or Trading Company?
A: We are Factory. That has been focusing on motors and accessories for more than 20 years.

Q: What is your warranty?
A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.

Q: What kind of motor can you supply?
A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.

Q: Do you offer OEM Service?
A: Yes. We offer OEM/ODM service.

Q: What is your lead Time?
A: Usually 10 days. Precise Time depend on Qty.
