products details

Home > Products >

1/3HP 1750RPM TEFC Permanent Magnet Brushed DC Motor, Multi Voltage 12V 24V 90V PMDC Motor for Conveyor Pump Packaging Automation Equipment

All Category

PMDC Motor

Mrs. Anny Song

motorexport@bimo-idea.com

0086-18802094629

Contact Now

1/3HP 1750RPM TEFC Permanent Magnet Brushed DC Motor, Multi Voltage 12V 24V 90V PMDC Motor for Conveyor Pump Packaging Automation Equipment

Brand Name:	BM
Model Number:	PMDC
MOQ:	10 pcs
Price:	Negotiation
Packaging Details:	Cartons/pallet
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Name:

1/3hp PMDC Motor

Speed(RPM):

1750rpm

Insulation Class:

Class F (155°C)

Power:

1/3HP

Rated Voltage:

12V/24V/90V

Frame:

Supply Ability:

10000pcs per month

Highlight:

1/3HP PMDC motor for conveyor

12V 24V 90V brushed DC motor

TEFC permanent magnet motor for automation

Product Description

1/3HP 1750RPM TEFC Permanent Magnet Brushed DC Motor, Multi Voltage 12V 24V 90V PMDC Motor for Conveyor Pump Packaging Automation Equipment

1, This 1/3HP 1750RPM TEFC Permanent Magnet DC Motor is a multi-voltage PMDC brushed motor offered in 12V, 24V and 90VDC options.

2, Adopting Totally Enclosed Fan Cooled TEFC design, this 0.33HP dc motor features IP54 dust & splash resistance, Class F insulation and stable constant torque at 1750 full load RPM.

3, Built with high energy permanent magnet and replaceable carbon brushes, it supports S1 continuous running, widely used in battery-powered machinery, small conveyors, DC pumps and light industrial equipment. Standard NEMA frame foot & C-face mounting for direct replacement.

Power(HP)	Speed(RPM)	Arm Volt	NEMA FRAME	ENCL.	Curret(Amp.)	Torque(In.Ibs)	App.Weights(Ibs)
1/4	1750	12	56C	TEFC	21.0	9	21
1/4	1750	24	56C	TEFC	10.5	9	21
1/3	1750	12	56C	TEFC	27.0	12	23
1/3	1750	24	56C	TEFC	13.5	12	23
1/2	1750	12	56C	TEFC	39.0	18	25
1/2	1750	24	56C	TEFC	20.0	18	25
3/4	1750	12	56C	TEFC	63.6	27	30
3/4	1750	24	56C	TEFC	31.8	27	30
3/4	3600	12	56C	TEFC	63.6	13	23
3/4	3600	24	56C	TEFC	31.8	13	23
1	1750	12	56C	TEFC	80.0	36	32
1	1750	24	56C	TEFC	40.0	36	32
1	3600	12	56C	TEFC	80.0	17.6	25
1	3600	24	56C	TEFC	40.0	17.6	25
1.5	1750	24	56C	TEFC	60.0	54.3	43
1.5	3600	24	56C	TEFC	60.0	26.4	30

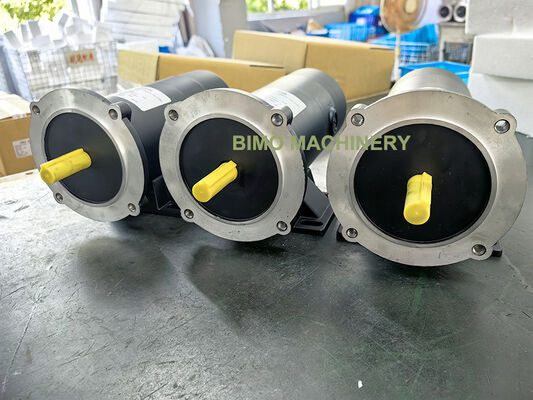

1/3HP 1750RPM TEFC Permanent Magnet Brushed DC Motor, Multi Voltage 12V 24V 90V PMDC Motor for Conveyor Pump Packaging Automation Equipment 0

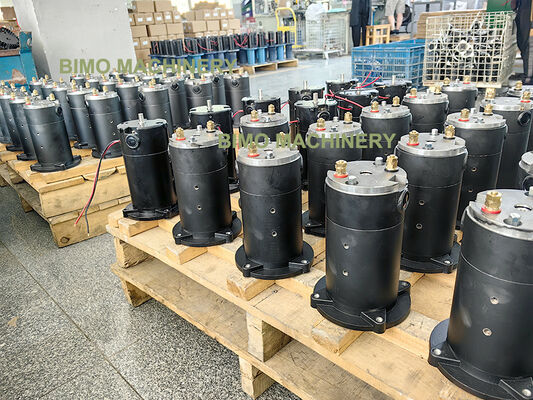

1/3HP 1750RPM TEFC Permanent Magnet Brushed DC Motor, Multi Voltage 12V 24V 90V PMDC Motor for Conveyor Pump Packaging Automation Equipment 2

1/3HP 1750RPM TEFC Permanent Magnet Brushed DC Motor, Multi Voltage 12V 24V 90V PMDC Motor for Conveyor Pump Packaging Automation Equipment 3

FAQ

Q: Are you Factory or Trading Company?
A: We are Factory. That has been focusing on motors and accessories for more than 20 years.

Q: What is your warranty?
A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.

Q: What kind of motor can you supply?
A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.

Q: Do you offer OEM Service?
A: Yes. We offer OEM/ODM service.

Q: What is your lead Time?
A: Usually 10 days. Precise Time depend on Qty.
