0.75HP 24V NEMA 56C Permanent Magnet Brushed DC Motor, 1800 RPM PMDC Motor

Brand Name:	BM
Model Number:	PMDC
MOQ:	10 pcs
Price:	Negotiation
Packaging Details:	Cartons/pallet
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Name:

24V PMDC Motor

Speed(RPM):

1750rpm

Insulation Class:

Class F (155°C)

Power:

3/4HP

Rated Voltage:

24V DC

Frame:

Supply Ability:

10000pcs per month

Highlight:

24V NEMA 56C PMDC motor

0.75HP permanent magnet DC motor

1800 RPM brushed DC motor

Product Description

0.75HP 24V NEMA 56C Permanent Magnet Brushed DC Motor, 1800 RPM PMDC Motor

NEMA 56C universal standard frame, interchangeable with all brand 56C PMDC motors
High-energy permanent magnet design, higher efficiency & lower no-load current than wound field DC motors
Wide constant torque speed range, perfect for variable speed industrial driving
Replaceable carbon brush assembly, easy on-site maintenance without disassembling whole motor
Dual mounting modes: foot mount + C-face flange mount, flexible OEM integration
Rugged steel housing & cast aluminum end caps, anti-vibration, durable for harsh workshop environment
Class F insulation + IP54 enclosure, stable running under long S1 continuous duty

Wide Application

Industrial automation: Light conveyor belts, labeling & packaging machines, small machine tools
Battery-powered mobile equipment: AGVs, electric pallet jacks, mobility scooters, cleaning machines
Fluid & ventilation: Small DC pumps, industrial exhaust fans, hydraulic power units
OEM machinery: Gym equipment, lifting actuators, agricultural small transport devices

Power(HP)	Speed(RPM)	Arm Volt	NEMA FRAME	ENCL.	Curret(Amp.)	Torque(In.Ibs)	App.Weights(Ibs)
1/4	1750	12	56C	TEFC	21.0	9	21
1/4	1750	24	56C	TEFC	10.5	9	21
1/3	1750	12	56C	TEFC	27.0	12	23
1/3	1750	24	56C	TEFC	13.5	12	23
1/2	1750	12	56C	TEFC	39.0	18	25
1/2	1750	24	56C	TEFC	20.0	18	25
3/4	1750	12	56C	TEFC	63.6	27	30
3/4	1750	24	56C	TEFC	31.8	27	30
3/4	3600	12	56C	TEFC	63.6	13	23
3/4	3600	24	56C	TEFC	31.8	13	23
1	1750	12	56C	TEFC	80.0	36	32
1	1750	24	56C	TEFC	40.0	36	32
1	3600	12	56C	TEFC	80.0	17.6	25
1	3600	24	56C	TEFC	40.0	17.6	25
1.5	1750	24	56C	TEFC	60.0	54.3	43
1.5	3600	24	56C	TEFC	60.0	26.4	30

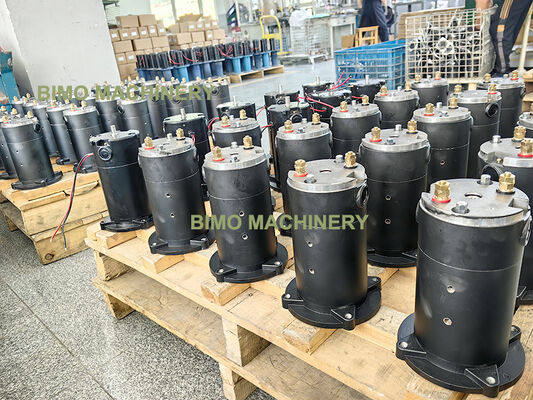

0.75HP 24V NEMA 56C Permanent Magnet Brushed DC Motor, 1800 RPM PMDC Motor 0

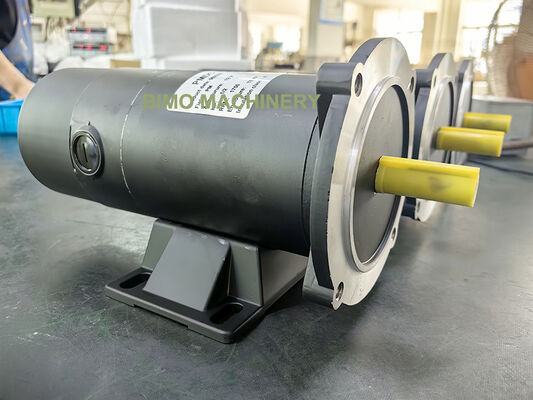

0.75HP 24V NEMA 56C Permanent Magnet Brushed DC Motor, 1800 RPM PMDC Motor 2

0.75HP 24V NEMA 56C Permanent Magnet Brushed DC Motor, 1800 RPM PMDC Motor 3

FAQ

Q: Are you Factory or Trading Company?
A: We are Factory. That has been focusing on motors and accessories for more than 20 years.

Q: What is your warranty?
A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.

Q: What kind of motor can you supply?
A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.

Q: Do you offer OEM Service?
A: Yes. We offer OEM/ODM service.

Q: What is your lead Time?
A: Usually 10 days. Precise Time depend on Qty.
