products details

Home > Products >

PMDC Motor

3/4HP 24V DC Permanent Magnet Brushed Motor NEMA 56C Frame PMDC Motor

All Category

PMDC Motor

Mrs. Anny Song

motorexport@bimo-idea.com

0086-18802094629

Contact Now

3/4HP 24V DC Permanent Magnet Brushed Motor NEMA 56C Frame PMDC Motor

Brand Name:	BM
Model Number:	PMDC
MOQ:	10 pcs
Price:	Negotiation
Packaging Details:	Cartons/pallet
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Name:

24V PMDC Motor

Speed(RPM):

1750rpm

Net Weight:

10 KG / 22 LBS

Power:

3/4HP

Voltage:

Frame:

Supply Ability:

10000pcs per month

Highlight:

3/4HP PMDC motor 24V DC

NEMA 56C frame PMDC motor

permanent magnet brushed motor

Product Description

3/4HP 24V DC Permanent Magnet Brushed Motor NEMA 56C Frame PMDC Motor

1, Our NEMA 56C 3/4HP 24V brushed permanent magnet DC motor (PMDC motor) strictly complies with NEMA 56C frame mechanical standards,

2,supporting direct drop-in replacement without modification for all existing 56C mount equipment. Equipped with high-performance rare earth permanent magnets,

3, this 0.75HP 24V DC brush motor features high starting torque, stable constant torque output and wide adjustable speed ratio up to 20:1 when matched with PWM/SCR DC speed controllers.

Power(HP)	Speed(RPM)	Arm Volt	NEMA FRAME	ENCL.	Curret(Amp.)	Torque(In.Ibs)	App.Weights(Ibs)
1/4	1750	12	56C	TEFC	21.0	9	21
1/4	1750	24	56C	TEFC	10.5	9	21
1/3	1750	12	56C	TEFC	27.0	12	23
1/3	1750	24	56C	TEFC	13.5	12	23
1/2	1750	12	56C	TEFC	39.0	18	25
1/2	1750	24	56C	TEFC	20.0	18	25
3/4	1750	12	56C	TEFC	63.6	27	30
3/4	1750	24	56C	TEFC	31.8	27	30
3/4	3600	12	56C	TEFC	63.6	13	23
3/4	3600	24	56C	TEFC	31.8	13	23
1	1750	12	56C	TEFC	80.0	36	32
1	1750	24	56C	TEFC	40.0	36	32
1	3600	12	56C	TEFC	80.0	17.6	25
1	3600	24	56C	TEFC	40.0	17.6	25
1.5	1750	24	56C	TEFC	60.0	54.3	43
1.5	3600	24	56C	TEFC	60.0	26.4	30

3/4HP 24V DC Permanent Magnet Brushed Motor NEMA 56C Frame PMDC Motor 0

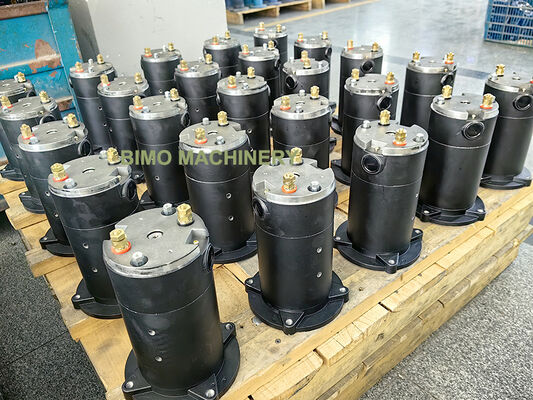

3/4HP 24V DC Permanent Magnet Brushed Motor NEMA 56C Frame PMDC Motor 2

3/4HP 24V DC Permanent Magnet Brushed Motor NEMA 56C Frame PMDC Motor 3

FAQ

Q: Are you Factory or Trading Company?
A: We are Factory. That has been focusing on motors and accessories for more than 20 years.

Q: What is your warranty?
A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.

Q: What kind of motor can you supply?
A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.

Q: Do you offer OEM Service?
A: Yes. We offer OEM/ODM service.

Q: What is your lead Time?
A: Usually 10 days. Precise Time depend on Qty.
