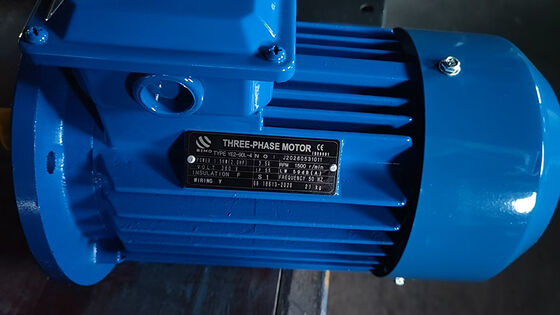

YE2-90L-4 2HP 380V/660V Three Phase AC Induction Asynchronous Motor 1500RPM IE2 Efficiency F Insulation Cast Iron Motor

Brand Name:	BM
Model Number:	YE2-90L-4
MOQ:	10 pcs
Price:	USD38-USD680
Packaging Details:	Cartons/Pallet
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Name:

2hp Three Phase Motor

Hounsing:

Cast Iron

Mounting Type:

Frequency:

Enclosure:

Power:

Supply Ability:

1000pcs per day

Highlight:

2HP three phase induction motor

380V cast iron AC motor

IE2 efficiency asynchronous motor

Product Description

YE2-90L-4 2HP 380V/660V Three Phase AC Induction Asynchronous Motor 1500RPM IE2 Efficiency F Insulation Cast Iron Motor

1,YE2-90L-4 is an IE2 high-efficiency three-phase asynchronous induction motor complying with IEC international standards.

2, It features drip-proof enclosed structure and foot-mounted (B3) installation, widely used for general mechanical driving equipment.

3, ApplicationCommonly matched with pumps, fans, conveyors, machine tools and other general industrial machinery.

Main Technical Parameters

Model: YE2-90L-4
Rated Output Power: 1.5kW (2HP)
Rated Voltage: 380V, Dual frequency: 50/60Hz
Pole: 4 poles, Synchronous speed: 1500 RPM
Efficiency standard: IE2 high efficiency level

Model	(kW)	(A)	(r/min)	(%)	Power	Stall Torque	Max Torque	Stalled rotor current	Noise	Weight(kg)
Model	(kW)	(A)	(r/min)	(%)	Factor	Rated Torque	Rate Torque	Rated Current	Noise	Weight(kg)
YE2-400M1-2	355	621.7	2980	96.4	0.9	1.3	2.5	6.5	108	3000
YE2-400M2-2	400	700.5	2980	96.4	0.9	1.3	2.5	6.5	108	3100
YE2-400M3-2	450	788.1	2980	96.4	0.9	1.3	2.5	6.5	108	3200
YE2-400L1-2	500	875.6	2980	96.4	0.9	1.3	2.5	6.5	108	3300
YE2-400L2-2	560	968.9	2980	96.5	0.91	1.2	2.5	7	109	3400
YE2-400M1-4	355	636.5	1490	96.3	0.88	1.6	2.5	6.5	105	3100
YE2-400M2-4	400	717.2	1490	96.3	0.88	1.6	2.5	6.5	105	3200
YE2-400M3-4	450	806.8	1490	96.3	0.88	1.6	2.5	6.5	105	3300
YE2-400L1-4	500	895.5	1490	96.4	0.88	1.4	2.5	6.5	105	3400
YE2-400L2-4	560	991.7	1490	96.4	0.89	1.4	2.5	6.5	108	3800
YE2-4501-4	630	1114.5	1490	96.5	0.89	1.4	2.5	6.5	108	4750
YE2-4502-4	710	1256.1	1490	96.5	0.89	1.4	2.5	6.5	108	5000
YE2-4503-4	800	1398.1	1490	96.6	0.9	1.4	2.5	6.5	108	5150
YE2-4504-4	900	1572.9	1490	96.6	0.9	1.4	2.5	6.5	108	5500
YE2-400M1-6	280	540.4	990	96	0.82	1.8	2.5	6.5	102	3000
YE2-400M2-6	315	608	990	96	0.82	1.8	2.5	6.5	102	3100
YE2-400M3-6	355	685.2	990	96	0.82	1.8	2.5	6.5	102	3200
YE2-400L2-6	400	761.2	990	96.2	0.83	1.6	2.4	6.5	102	3400
YE2-400L3-6	450	856.3	990	96.2	0.83	1.6	2.4	6.5	102	3550
YE2-4501-6	500	949.5	995	96.4	0.83	1.6	2.4	6.5	102	4500
YE2-4502-6	560	1050.8	995	96.4	0.84	1.6	2.4	6.5	105	4750
YE2-4503-6	630	1180.9	995	96.5	0.84	1.6	2.4	6.5	105	5100
YE2-4504-6	710	1330.8	995	96.5	0.84	1.6	2.4	6.5	105	5450
YE2-400M1-8	250	498.7	740	95.2	0.8	1.6	2.5	6.5	95	3200
YE2-400M2-8	280	558.6	740	95.2	0.8	1.6	2.5	6.5	95	3300
YE2-400L1-8	315	628.4	740	95.2	0.8	1.6	2.5	6.5	95	31100
YE2-400L2-8	355	705.3	740	95.6	0.8	1.6	2.4	6	95	3500
YE2-400L3-8	400	794.7	740	95.6	0.8	1.6	2.4	6	95	4500
YE2-4502-8	450	869.5	745	95.9	0.82	1.6	2.4	6	99	5100
YE2-4503-8	500	963.1	745	96.2	0.82	1.6	2.4	6	99	5400
YE2-4504-8	560	1078.6	745	96.2	0.82	1.6	2.4	6	102	5550

YE2-90L-4 2HP 380V/660V Three Phase AC Induction Asynchronous Motor 1500RPM IE2 Efficiency F Insulation Cast Iron Motor 0

YE2-90L-4 2HP 380V/660V Three Phase AC Induction Asynchronous Motor 1500RPM IE2 Efficiency F Insulation Cast Iron Motor 1

YE2-90L-4 2HP 380V/660V Three Phase AC Induction Asynchronous Motor 1500RPM IE2 Efficiency F Insulation Cast Iron Motor 2

YE2-90L-4 2HP 380V/660V Three Phase AC Induction Asynchronous Motor 1500RPM IE2 Efficiency F Insulation Cast Iron Motor 3

FAQ

Q: Are you Factory or Trading Company?
A: We are Factory. That has been focusing on motors and accessories for more than 20 years.

Q: What is your warranty?
A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.

Q: What kind of motor can you supply?
A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.

Q: Do you offer OEM Service?
A: Yes. We offer OEM/ODM service.

Q: What is your lead Time?
A: Usually 10 days. Precise Time depend on Qty.
