High-performance ML90L-4 1.5kW single phase motor. Adopts aluminum housing and dual-capacitor structure, ideal for pumps, fans and general machinery equipment.

All Category

PMDC Motor

Mrs. Anny Song

motorexport@bimo-idea.com

0086-18802094629

Contact Now

High-performance ML90L-4 1.5kW single phase motor. Adopts aluminum housing and dual-capacitor structure, ideal for pumps, fans and general machinery equipment.

Brand Name:	BM
Model Number:	ML series
MOQ:	10PCS
Price:	USD35-USD120
Packaging Details:	Cartons/Pallets
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Name:

1.5kW Dual-capacitor Motor

Ambient Temperature::

-15°-+40°C

Mounting:

B3,B5,B14,B35,B34

Speed:

3000rpm

Voltage:

220V/110Vor Request

Power:

1.5kw

Supply Ability:

10000pcs per month

Highlight:

1.5kW single phase motor

aluminum housing single phase motor

dual-capacitor single phase motor

Product Description

High-performance ML90L-4 1.5kW single phase motor. Adopts aluminum housing and dual-capacitor structure, ideal for pumps, fans and general machinery equipment.

CE Approved ML/YL High Efficiency Single Phase Electric Motor

ML motors are cast aluminum frame YL series capacitor start&capacitor run electric motors,suitable for compressors,pumps and other equipments requiring large starting torque. This series motors with larger starting torque,power factor,efficiency,lower noise,less weightsmall size and convenient maintenace.

General Features

• Type: Capacitor-start & capacitor-run (dual-capacitor)

• Frame: Die-cast aluminum alloy, TEFC (Totally Enclosed Fan Cooled)

• Mounting: IM B3 (foot), IM B5 (flange), IM B14 (small flange)

• Protection: IP54/IP55/IP56

• Insulation: Class B/F; Temp rise Class B

• Duty: S1 (continuous)

• Cooling: IC0141 / IC411

• Ambient: -20°C ~ 40°C; Altitude ≤1000m

✅ Electrical Data (Standard)

• Voltage: 220V/230V/240V (110V/115V/120V on request)

• Frequency: 50Hz (60Hz optional)

• Poles: 2-pole (≈2800rpm), 4-pole (≈1400rpm), 6-pole (≈900rpm)

✅ Power Range (50Hz, 220V)

• Frame H63: 0.12–0.25kW (0.16–0.34HP)

• Frame H71: 0.37–0.55kW (0.50–0.75HP)

• Frame H80: 0.75–1.1kW (1.0–1.5HP)

• Frame H90: 1.5–2.2kW (2.0–3.0HP)

• Frame H100: 3.0kW (4.0HP)

• Frame H112: 3.7–4.0kW (5.0–5.5HP)

Model	Power	Speed	Volt	Frequency
Model	(Kw)	(rpm)	(V)	(Hz)
ML7112	0.37	2800	220	50
ML7122	0.55	2800	220	50
ML7114	0.25	1400	220	50
ML7124	0.37	1400	220	50
ML8012	0.75	2800	220	50
ML8022	1.1	2800	220	50
ML8014	0.55	1400	220	50
ML8024	0.75	1400	220	50
ML90S-2	1.5	2800	220	50
ML90L-2	2.2	2800	220	50
ML90S-4	1.1	1400	220	50
ML90L-4	1.5	1400	220	50
ML100L-2	3	2800	220	50
ML100L-4	2.2	1400	220	50
ML100L2-4	3	1400	220	50

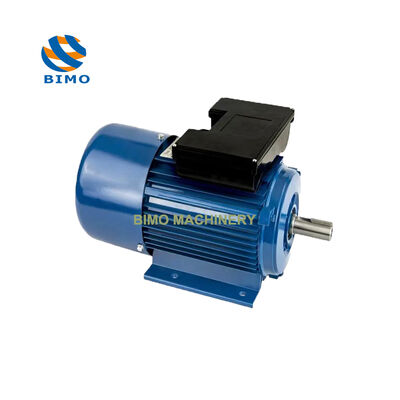

High-performance ML90L-4 1.5kW single phase motor. Adopts aluminum housing and dual-capacitor structure, ideal for pumps, fans and general machinery equipment. 0

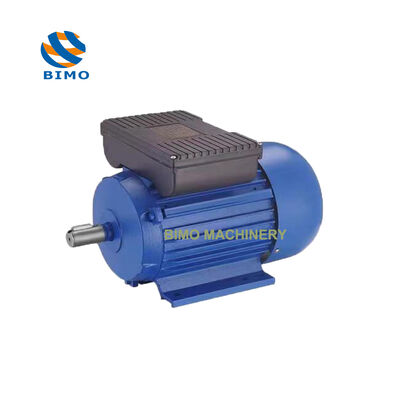

High-performance ML90L-4 1.5kW single phase motor. Adopts aluminum housing and dual-capacitor structure, ideal for pumps, fans and general machinery equipment. 1

High-performance ML90L-4 1.5kW single phase motor. Adopts aluminum housing and dual-capacitor structure, ideal for pumps, fans and general machinery equipment. 3

FAQ

Q: Are you Factory or Trading Company?
A: We are Factory. That has been focusing on motors and accessories for more than 20 years.

Q: What is your warranty?
A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.

Q: What kind of motor can you supply?
A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.

Q: Do you offer OEM Service?
A: Yes. We offer OEM/ODM service.

Q: What is your lead Time?
A: Usually 10 days. Precise Time depend on Qty.
