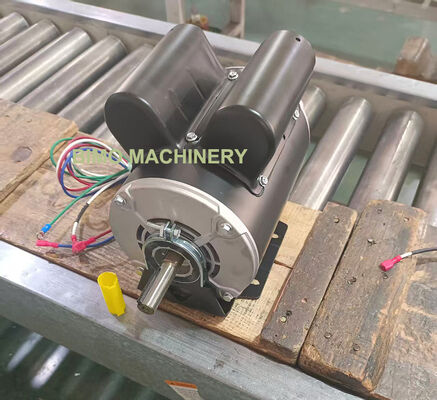

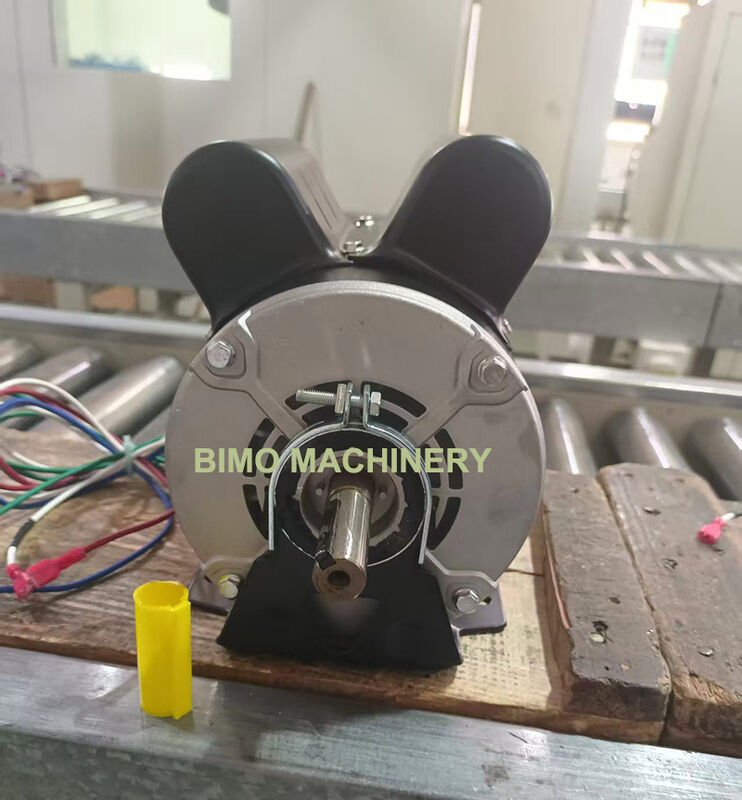

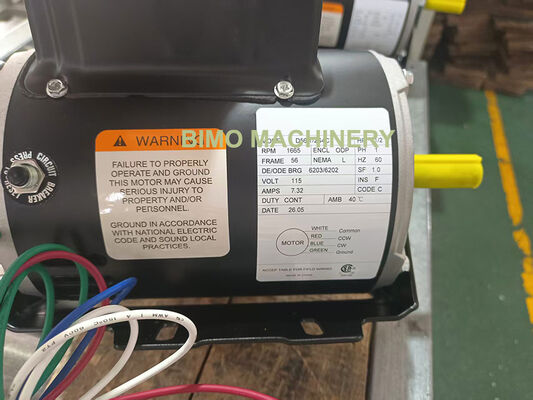

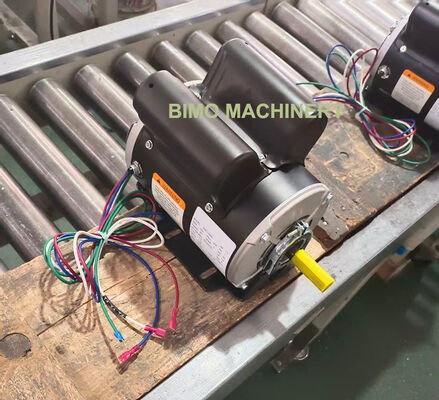

Industrial NEMA ODP Single Phase motor 1/2hp D561/2S4C 115V 60HZ NEMA AC Motor for Copressors, Fans,Pumps and General Industrial Drive

Brand Name:	BM
Model Number:	56
MOQ:	10PCS
Price:	Negotiation
Packaging Details:	Carton/Pallet
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE UL

Name:

NEMA ODP Motor

Frame Size:

56C

Frequency:

60 Hz

Horsepower:

1/2hp

Efficiency:

Premium

Voltage:

115v

Supply Ability:

10000pcs per month

Highlight:

NEMA ODP single phase motor

1/2hp industrial AC motor

115V NEMA motor for compressors

Product Description

Industrial NEMA ODP Single Phase motor 1/2hp D561/2S4C 115V 60HZ NEMA AC Motor for Copressors, Fans,Pumps and General Industrial Drive

1, NEMA standard motors are mainly used in the United States,Canada and Mexico.

2, The working frequency of the motor is 60Hz,the working voltage of the three-phase motor is 230/460V,460V,575V,and the single-phase motor is 115/208-230V.

3, The terminal box is generally fixed in the middle of the base.The motor has 3,6,9 and 12 lead wires,and the standard length of the lead wire is 6 inches(15.24cm)long from the base.

4, The corresponding motor synchronous transmission speed is:2-pole motor 3600RPM,4-pole motor 1800RPM,6-pole motor 1200RPM.

HP	1/4HP-2HP
Frame	48 56
Rated frequency:	50Hz/60Hz
Insulation class:	B/F
Protection class:	IP23

Industrial NEMA ODP Single Phase motor 1/2hp D561/2S4C 115V 60HZ NEMA AC Motor for Copressors, Fans,Pumps and General Industrial Drive 0

FAQ

Q: Are you Factory or Trading Company?
A: We are Factory. That has been focusing on motors and accessories for more than 20 years.

Q: What is your warranty?
A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.

Q: What kind of motor can you supply?
A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.

Q: Do you offer OEM Service?
A: Yes. We offer OEM/ODM service.

Q: What is your lead Time?
A: Usually 10 days. Precise Time depend on Qty.
