450KW YKS Series IC81W Air-Water Cooled High Voltage 6KV 10KV Squirrel Cage Motor

Brand Name:	BM
Model Number:	YKS5005-12
MOQ:	1 PC
Price:	Negotiation
Packaging Details:	Wooden Case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Name:

Squirrel Cage Motor

Protection:

IP23 IP44 Or IP54

Frequency:

50 Hz

Motor Type:

Squirrel Cage Motor

Voltage Rating:

6KV, 10KV, 3.3KV, 6.6KV, 11KV

Power Rating:

450KW

Supply Ability:

100PC per month

Product Description

450KW YKS Series IC81W Air-Water Cooled High Voltage 6KV 10KV Squirrel Cage Motor

1, YKS series large squirrel-cage three-phase asynchronous motor is a series of products developed based on advanced motor technology at home and abroad, in accordance with international standards, national standards and industry standards. The motor is produced according to the technical conditions of JB/T7593-2007 and JB/T 10315.1. It is a new series of large AC motors. YKS high voltage water-cooled induction motor uses new materials, new processes, has the characteristics of high efficiency, low noise, small vibration, light weight, high reliability, easy installation and maintenance.

2, This series of high-voltage water-cooled induction motors have two rated voltages of 6kV and 10kV. This series of squirrel cage water-cooled induction motors have IP54 and IP55 protection levels. They can also be made into ducted ventilation IP44 according to user requirements. The installation type of high-pressure water-cooled induction motors is IMB3. The power class, installation dimensions and electrical performance of this series of motors are in compliance with the relevant provisions of the IEC standard.

1, Motor Frame: IEC 355-6302, Output(KW): 220kW-3150kW
3, Rated Voltage(V): The sandard rated voltage of this series motors are 380V, 660V 6000V and 10KV, The voltage beyond above scope can be negotiated when placing orders
4, Raged Speed(rpm):950r/min 6-pole. 1400r/min 4-pole. 2800r/min 2-pole.
5, Insulation Class: CLASS and CLASS B
6, Protection Class: IP44 and IP54 is adopted for the motors protections of this series
7, Mounting Type: IMB3
8, Duty: Continuous working system(S1) is applied

Type	Power(KW)	Speed(r/min)	Rated Current(A)	Efficiency(%)	Power Factor(cosΦ)	Locked Rotor Current Rated Current	Locked Rotor Torque Rated Torque	Breakdown Torque Rated Torque
YKS3551-2	220KW	3000	26.5	92.8	0.86	7.0	0.6	1.8
YKS3552-2	250KW		30.1	92.9
YKS3353-2	280KW		33.7	93.1
YKS3554-2	315KW		37.7	93.4
YKS3555-2	355KW		42.2	93.7
YKS3556-2	400KW		47.6	94.1
YKS3551-4	185KW	1500	22.8	93.1	0.84	6.5	0.7
YKS3552-4	200KW		24.6	93.2	0.84
YKS3553-4	220KW		26.7	93.3	0.85
YKS3554-4	250KW		30.3	93.4	0.85
YKS3555-4	280KW		33.5	93.5	0.86
YKS3556-4	315KW		37.7	93.6	0.86
YKS3552-6	160KW	1000	20.6	92.4	0.81	6.0
YKS3553-6	185KW		23.7	92.6
YKS3554-6	200KW		25.6	92.8
YKS3555-6	220KW		27.8	93.0	0.82
YKS3556-6	250KW		31.4	93.3	0.82
YKS3555-8	160KW	750	21.6	92.4	0.77	5.5
YKS3556-8	185KW	750	25.0	92.6	0.77	5.5
YKS4001-2	450KW	3000	53.3	94.4	0.86	7.0	0.6	1.8
YKS4002-2	500KW		58.5	94.6	0.87
YKS4003-2	560KW		65.4	94.7
YKS4004-2	630KW		73.4	94.9
YKS4001-1	355KW	1500	42.3	93.8	0.86	6.5	0.7
YKS4002-4	400KW		47.6	94.0
YKS4003-4	450KW		53.4	94.2
YKS4004-4	500KW		58.6	94.3	0.87
YKS4005-4	560KW		65.5	94.5	0.87
YKS4002-6	280KW	1000	34.7	93.5	0.83	6.0
YKS4003-6	315KW		38.9	93.7
YKS4004-6	355KW		43.8	93.9
YKS4005-6	400KW		49.3	94.0
YKS4006-8	750KW	750		92.6	0.77	5.5	0.8

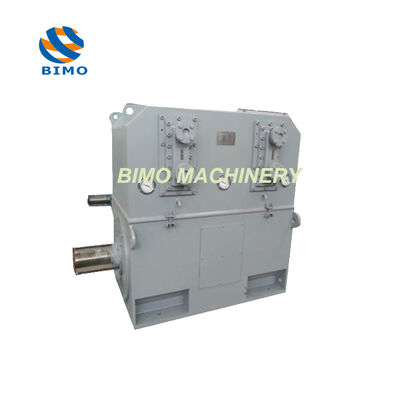

450KW YKS Series IC81W Air-Water Cooled High Voltage 6KV 10KV Squirrel Cage Motor 0

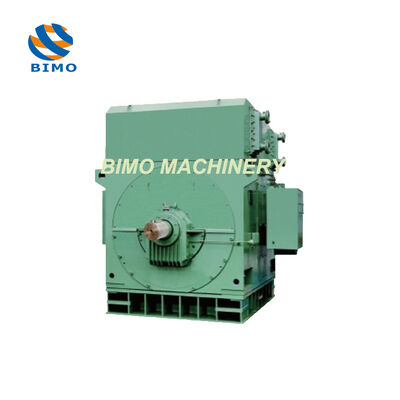

450KW YKS Series IC81W Air-Water Cooled High Voltage 6KV 10KV Squirrel Cage Motor 2

FAQ

Q: Are you Factory or Trading Company?
A: We are Factory. That has been focusing on motors and accessories for more than 20 years.

Q: What is your warranty?
A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.

Q: What kind of motor can you supply?
A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.

Q: Do you offer OEM Service?
A: Yes. We offer OEM/ODM service.

Q: What is your lead Time?
A: Usually 10 days. Precise Time depend on Qty.
