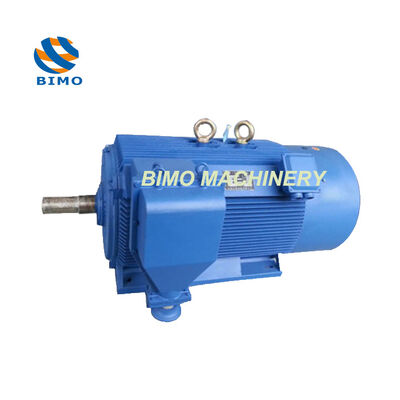

160KW-2000KW Y2 Series IC411 TEFC Compacted High Voltage 6KV 10KV Squirrel Cage Motor

Brand Name:	BM
Model Number:	H355-560
MOQ:	1 PC
Price:	Negotiation
Packaging Details:	Wooden Case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Name:

Squirrel Cage Motor

Protection:

IP23 IP44 Or IP54

Frequency:

50 Hz

Motor Type:

Squirrel Cage Motor

Voltage Rating:

6KV, 10KV, 3.3KV, 6.6KV, 11KV

Power Rating:

160KW-2000KW

Supply Ability:

100PC per month

Product Description

160KW-2000KW Y2 Series IC411 TEFC Compacted High Voltage 6KV 10KV Squirrel Cage Motor

1, Y2 Series Medium & High Voltage Three Phase High Power AC Electric Motor FeaturesThe property approach or attain overseas advanced level,protection class in IP54 or IP55.

2, The performance and mounting dimensions meet the National standard GB755 and IEC standards. Our company was certified ISO9001-2000, the whole operation including ordering, R&D, manufacturing, sales and service is in the line of ISO9001.

3, The production is designed based on supply 50Hz(60Hz on request), 6KV, (3KV, 3.3KV, 6.6KV on request), mounting IMB3(IMB35, IMV1 on request).

4, Cold-rolled lamination steel is used to get low loss and high efficiency.Insulation class F(Rise B)and VPI process insured the insulation system.Temperature rise is B,it can keep the insulation for a long time.

5, The basic cooling method is Ic411.The cooling system is great.

6, It has the advantage of high efficiency,low vibration,low noise and easy-maintain.

7, The direct and reduced-voltage starting can be applied under rated frequency and voltage.

Motor Type	Rated Power		Rated Speed	Efficiency	Power Factor	Current			Torque			Moment of inertia (J)	Appro WT
						Full Load 6kV	Full Load 6.6kV	Locked Rotor	Full Load	Locked Rotor	Pull Out
	kW	(HP)	RPM	%	%	A	A	%FLC	kg-m	%FLT	%FLT	kg-m2	kg
Y2-315 1-2	185KW	250HP	2980	94.1	84.0	22.5	20.5	700	60	70	200	3.3	1740
Y2-315 2-2	200KW	270HP	2980	94.3	84.0	24.3	22.1	700	65	70	200	3.5	1800
Y2-315 3-2	220KW	295HP	2980	94.4	84.0	26.7	24.3	700	72	70	200	3.7	1860
Y2-315 4-2	250KW	335HP	2980	94.4	84.0	30.3	27.6	700	82	70	200	4.0	1930
Y2-315 5-2	280KW	375HP	2980	94.4	84.0	34.0	30.9	700	92	70	200	4.3	2000
Y2-355 1-2	315KW	420HP	2980	94.6	84.0	38.1	34.7	700	103	70	200	6.5	2240
Y2-355 2-2	355KW	475HP	2980	94.7	86.0	41.9	38.1	700	116	70	200	7	2340
Y2-355 3-2	400KW	535HP	2980	94.7	86.0	47.3	43.0	700	131	70	200	7.5	2440
Y2-355 4-2	450KW	605HP	2980	94.8	86.0	53.1	48.3	700	147	70	200	8	2550
Y2-400 1-2	500KW	670HP	2980	95.2	86.0	58.8	53.4	700	164	70	200	12	3200

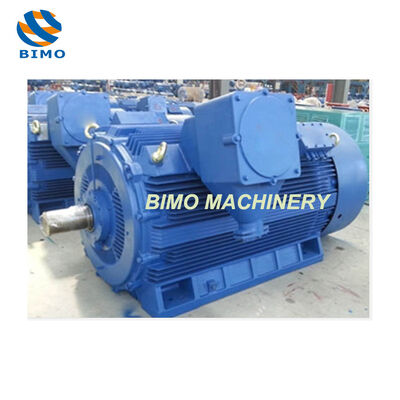

160KW-2000KW Y2 Series IC411 TEFC Compacted High Voltage 6KV 10KV Squirrel Cage Motor 0

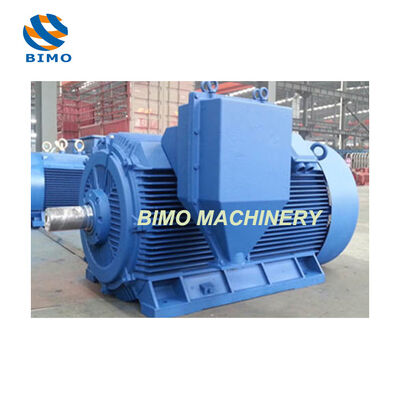

160KW-2000KW Y2 Series IC411 TEFC Compacted High Voltage 6KV 10KV Squirrel Cage Motor 2

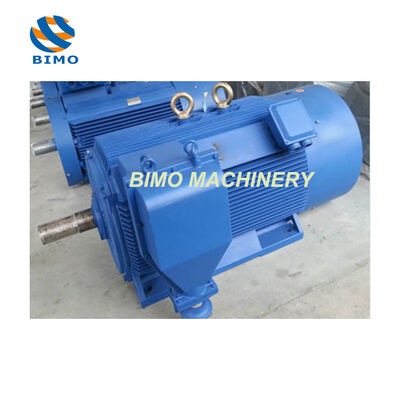

160KW-2000KW Y2 Series IC411 TEFC Compacted High Voltage 6KV 10KV Squirrel Cage Motor 3

FAQ

Q: Are you Factory or Trading Company?
A: We are Factory. That has been focusing on motors and accessories for more than 20 years.

Q: What is your warranty?
A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.

Q: What kind of motor can you supply?
A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.

Q: Do you offer OEM Service?
A: Yes. We offer OEM/ODM service.

Q: What is your lead Time?
A: Usually 10 days. Precise Time depend on Qty.
