High Voltage Electric Motor

380V~11000 V YR JR JR2 Series 210kw High Tension Wound Rotor slip Ring Motors for Rolling Mill, Ball Mill, Cement Mill

All Category

PMDC Motor

Mrs. Anny Song

motorexport@bimo-idea.com

0086-18802094629

Contact Now

380V~11000 V YR JR JR2 Series 210kw High Tension Wound Rotor slip Ring Motors for Rolling Mill, Ball Mill, Cement Mill

Brand Name:	BM
Model Number:	JR137-8-210KW
MOQ:	1 PC
Price:	Negotiation
Packaging Details:	Wooden Case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Name:

Slip Ring Motors

Speed:

6~12p

Frequency:

50 Hz

Motor Type:

Slip Ring Motor

Voltage Rating:

Power Rating:

210kw 320kw 380kw

Supply Ability:

100PC per month

Product Description

380V~11000 V YR JR JR2 Series 210kw High Tension Wound Rotor slip Ring Motors for Rolling Mill, Ball Mill, Cement Mill

1,JR137-8-210KW 310KW 320KW 380KW Wound Rotor Slip Ring Induction Motor comply with the specifications of JB563, JB564-64 technical conditions.

2, It can drive a variety of different types of machinery, such as crushers, ball mills, fans, compressors, water pumps, cutting machines, transportation machinery and other equipment, which can be used as prime mover in coal mines, machinery industries, power plants and various industrial and mining enterprises, suitable for small power grid capacity or places where the required starting torque is large to improve starting performance.

3, The JR series ball mill motor mounting type is horizontal mounting with base and foot. All types of motors can be coupled to the driven machinery using a coupling. The structure of the wound rotor slip ring motor is a bi-symmetrical radial ventilation system.

4, The cooled air enters from the air inlet of the end covers on both sides. Part of the cooled air passes through the fan or wind blade on the rotor of the motor blowing through the end part of the stator coil, and the other part passes through the radial ventilation slot in the rotor core, and then is discharged by the outlet on the side of the frame.

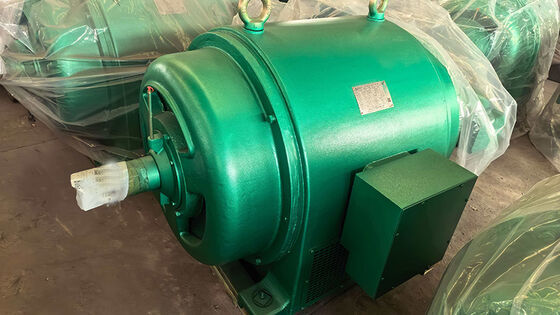

380V~11000 V YR JR JR2 Series 210kw High Tension Wound Rotor slip Ring Motors for Rolling Mill, Ball Mill, Cement Mill 0

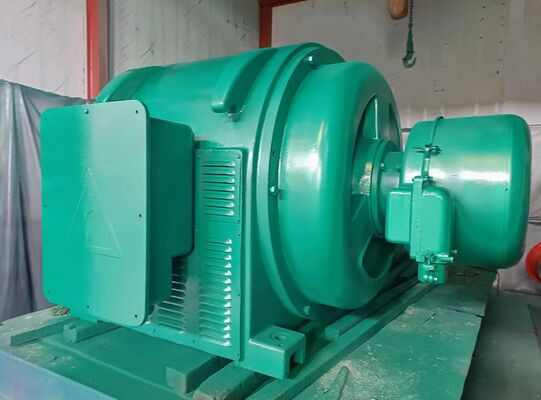

380V~11000 V YR JR JR2 Series 210kw High Tension Wound Rotor slip Ring Motors for Rolling Mill, Ball Mill, Cement Mill 2

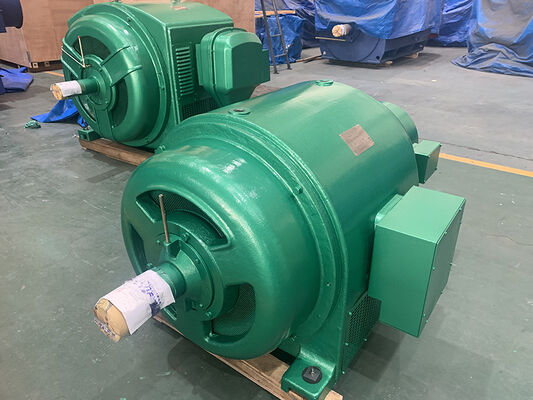

380V~11000 V YR JR JR2 Series 210kw High Tension Wound Rotor slip Ring Motors for Rolling Mill, Ball Mill, Cement Mill 3

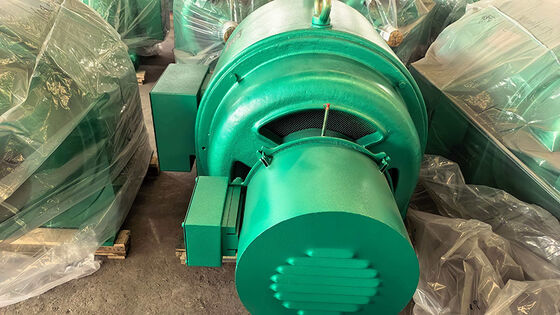

380V~11000 V YR JR JR2 Series 210kw High Tension Wound Rotor slip Ring Motors for Rolling Mill, Ball Mill, Cement Mill 4

380V~11000 V YR JR JR2 Series 210kw High Tension Wound Rotor slip Ring Motors for Rolling Mill, Ball Mill, Cement Mill 5

Q: Are you Factory or Trading Company?
A: We are Factory. That has been focusing on motors and accessories for more than 20 years.

Q: What is your warranty?
A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.

Q: What kind of motor can you supply?
A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.

Q: Do you offer OEM Service?
A: Yes. We offer OEM/ODM service.

Q: What is your lead Time?
A: Usually 10 days. Precise Time depend on Qty.
