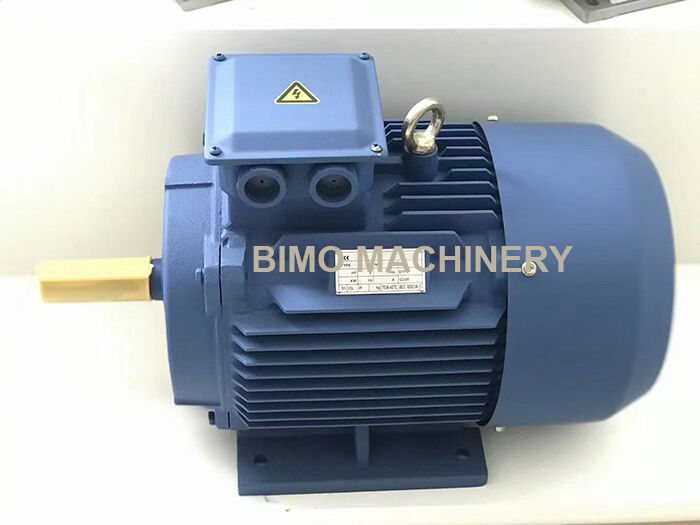

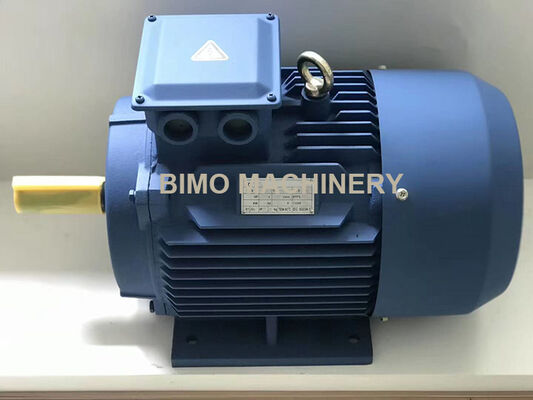

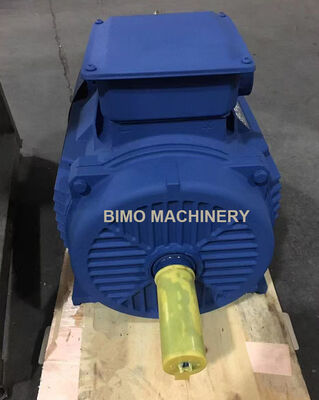

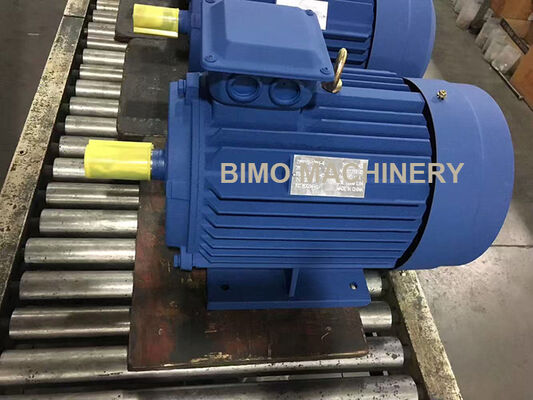

0.5HP 1HP 2HP 3HP 4HP 5HP 7.5HP 10HP 15HP 20HP 25HP 30HP 40HP 50HP 60HP 74HPThree-phase Ac Asynchronous Induction Electric Motor motore a corrente alternata

Brand Name:	BM
Model Number:	132S1-2-5.5KW
MOQ:	10 pcs
Price:	USD38-USD680
Packaging Details:	Cartons/Pallet
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Phase:

Three Phase

Body:

Cast Iron

AC Voltage:

Frequency:

Enclosure:

IP44/IP54/IP55

Power:

0.55kw-315kw

Supply Ability:

1000pcs per day

Highlight:

three-phase AC induction motor

asynchronous electric motor with warranty

high horsepower AC electric motor

Product Description

0.5HP 1HP 2HP 3HP 4HP 5HP 7.5HP 10HP 15HP 20HP 25HP 30HP 40HP 50HP 60HP 74HPThree-phase Ac Asynchronous Induction Electric Motor motore a corrente alternata

1, IE1/IE2/IE3/IE4 series Three Phase Induction AC Electric Motor with power range 0.06kw-315kw, supports multiple mounting types (B3/B5/B35/B14), and customizable voltage options.

2, It features a robust housing made of aluminum or cast iron, operates at 50HZ/60HZ, and ensures efficient performance.

3, Certifications include UKCA, EMC, EAC, and CE, ensuring compliance with international standards and providing market access for global buyers.

Output	MODEL	Amps	Speed	Eff.	p.f.	RT				Noise LwdB	Weight
(KW)	MODEL	(A)	(R/min)	%	p.f.	N.m				(A)	(Kg)
380V 50HZ 2P
0.18	Y2-631-2	0.5	2800	65	0.8	0.61	2.2	2.2	5.5	61	14
0.25	Y2-632-2	0.7	2800	68	0.81	0.96	2.2	2.2	5.5	61	14.5
0.37	Y2-711-2	1	2800	70	0.81	1.26	2.2	2.2	6.1	64	15
0.55	Y2-712-2	1.4	2800	73	0.82	1.88	2.2	2.3	6.1	64	15.5
0.75	Y2-801-2	1.8	2825	75	0.83	2.54	2.2	2.3	6.1	67	16.5
1.1	Y2-802-2	2.6	2825	77	0.84	3.72	2.2	2.3	7	67	17.5
1.5	Y2-90S-2	3.4	2840	79	0.84	5.04	2.2	2.3	7	72	21
2.2	Y2-90L-2	4.9	2840	81	0.85	7.4	2.2	2.3	7	72	25
3	Y2-100L-2	6.3	2880	83	0.87	9.95	2.2	2.3	7.5	76	33
4	Y2-112M-2	8.1	2890	85	0.88	13.22	2.2	2.3	7.5	77	41
5.5	Y2-132S1-2	11	2900	86	0.88	18.11	2.2	2.3	7.5	80	63
7.5	Y2-132S2-2	14.9	2900	87	0.88	24.7	2.2	2.3	7.5	80	70
11	Y2-160M1-2	21.3	2930	88	0.89	35.85	2.2	2.3	7.5	86	110
15	Y2-160M2-2	28.8	2930	89	0.89	48.89	2.2	2.3	7.5	86	120
18.5	Y2-160L-2	34.7	2930	90.5	0.9	60.3	2.2	2.3	7.5	86	135
22	Y2-180M-2	41	2940	91.2	0.9	71.46	2	2.3	7.5	89	165
30	Y2-200L1-2	55.5	2950	92	0.9	97.12	2	2.3	7.5	92	218
37	Y2-200L2-2	67.9	2950	92.3	0.9	119.78	2	2.3	7.5	92	230
45	Y2-225M-2	82.3	2970	92.3	0.9	144.7	2	2.3	7.5	92	280
55	Y2-250M-2	100.4	2970	92.5	0.9	176.85	2	2.3	7.5	93	365
75	Y2-280S-2	134.4	2970	93.2	0.91	241.16	2	2.3	7.5	94	495
90	Y2-280M-2	160.2	2970	93.8	0.91	289.39	2	2.3	7.5	94	565
110	Y2-315S-2	195.4	2980	94	0.91	352.51	1.8	2.2	7.1	96	890
132	Y2-315M-2	233.2	2980	94.5	0.91	423.02	1.8	2.2	7.1	96	980
160	Y2-315L1-2	279.3	2980	94.6	0.92	512.75	1.8	2.2	7.1	99	1055
200	Y2-315L2-2	348.4	2980	94.8	0.92	640.94	1.8	2.2	7.1	99	1110
250	Y2-355M-2	433.2	2985	95.3	0.92	799.83	1.6	2.2	7.1	103	1900
315	Y2-355L-2	544.2	2985	95.6	0.92	1007.79	1.6	2.2	7.1	103	2300

0.5HP 1HP 2HP 3HP 4HP 5HP 7.5HP 10HP 15HP 20HP 25HP 30HP 40HP 50HP 60HP 74HPThree-phase Ac Asynchronous Induction Electric Motor motore a corrente alternata 0

1,100% copper wire, best quality materials construction according with national standard easy maintenance,precision winding

production of enameled wire,high thermal conductivity,good heat dissipation effect.

2, Superior Iron core,The raw material is made of cold rolled first-grade non-oriented silicon steel with good toughness and strong bearing capacity.

3, High precision rotor, 800 cold-rolled steel rotor,intelligent finishing,durable and long-lasting,new national standard rotor, through strict static and dynamic,balance test to ensure smooth operation and noise reduction.

0.5HP 1HP 2HP 3HP 4HP 5HP 7.5HP 10HP 15HP 20HP 25HP 30HP 40HP 50HP 60HP 74HPThree-phase Ac Asynchronous Induction Electric Motor motore a corrente alternata 4

FAQ

Q: Are you Factory or Trading Company?
A: We are Factory. That has been focusing on motors and accessories for more than 20 years.

Q: What is your warranty?
A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.

Q: What kind of motor can you supply?
A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.

Q: Do you offer OEM Service?
A: Yes. We offer OEM/ODM service.

Q: What is your lead Time?
A: Usually 10 days. Precise Time depend on Qty.
