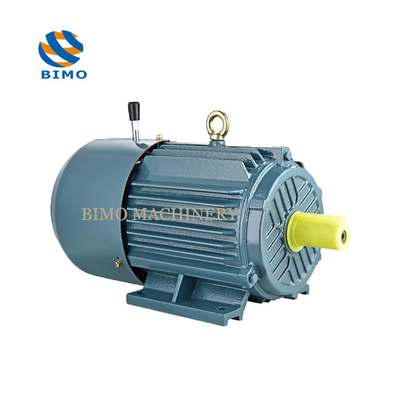

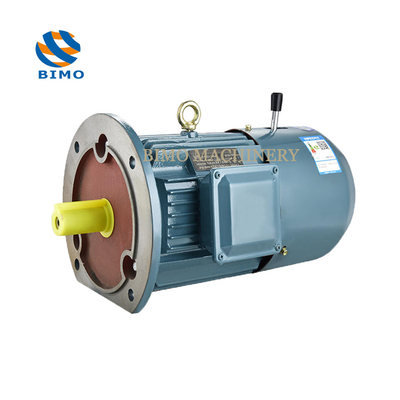

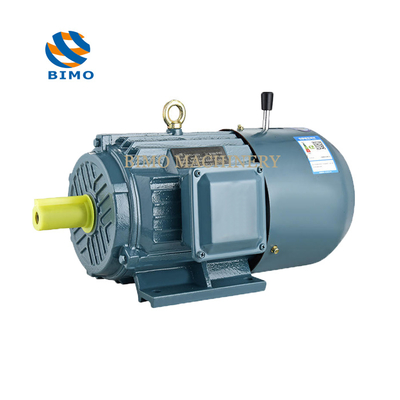

Hot Quality 0.12KW-22KW Electromagnet Brake Motor Three phase Asynchronous Explosion-proof Motor Electric Ac Induction Motor for Elevator

All Category

PMDC Motor

Mrs. Anny Song

motorexport@bimo-idea.com

0086-18802094629

Contact Now

Hot Quality 0.12KW-22KW Electromagnet Brake Motor Three phase Asynchronous Explosion-proof Motor Electric Ac Induction Motor for Elevator

Brand Name:	BIMO
Model Number:	Yej Series
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Cartons
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Frequency:

50HZ/60HZ

Protect Feature:

Phase:

Three-phase

Rated Power:

0.12KW-22KW

Poles:

2/4/6/8

Center Height:

63-355mm

Product Description

Hot Quality Electromagnet Brake Motor Three phase Asynchronous Explosion-proof Motor Electric Ac Induction Motor for Elevator

1,The electromagnetic brake motor is commonly used in applications that require precise motion control, safe parking, or emergency stops. Examples include elevators, electric vehicles, and mechanical transmission systems.

2, Advantages: Electromagnetic brake motors offer rapid response, adjustable braking force, and a long lifespan. Additionally, they contribute to enhancing the safety and reliability of systems.

Technical data-YEJ series motor-2 poles -380v/50HZ
type	Rated output		Full Load				Static braking torque	Max.braking time at No-load	Brake power
	Rated output		Speed	Input Current	Efficiency	PowTypeer factor	Static braking torque	Max.braking time at No-load	Brake power
	KW	HP	RPM	Amp	Eff.%	P.F	N.m	S	W
YEJ132S1-2	5.5	7.5	2900	11.10	85.5	0.88	75	0.25	130
YEJ132S2-2	7.5	10.0	2900	15.00	86.2	0.88	75	0.25	130
YEJ160M1-2	11	15	2930	21.80	87.2	0.88	150	0.35	150
YEJ160M2-2	15	20	2930	29.40	88.2	0.88	150	0.35	150
YEJ160L-2	18.5	25	2930	35.50	89.0	0.89	150	0.35	150
YEJ180M-2	22	30	2940	42.20	89.0	0.89	200

Hot Quality 0.12KW-22KW Electromagnet Brake Motor Three phase Asynchronous Explosion-proof Motor Electric Ac Induction Motor for Elevator 0

Hot Quality 0.12KW-22KW Electromagnet Brake Motor Three phase Asynchronous Explosion-proof Motor Electric Ac Induction Motor for Elevator 3
