IE4 Series YE4-90-2 2.2kW 2hp 220V 380V 2800 Rpm Three Phase Electric Motor Ac Motor for Pump

Brand Name:	BM
Model Number:	IE4
MOQ:	10 pcs
Price:	USD38-USD680
Packaging Details:	Cartons/Pallet
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Name:

IE4 Motor

Insulation Class:

Mounting Type:

B3 B5 B35

Frequency:

50HZ/60HZ

Enclosure:

IP55

Power:

0.75kw-315kw

Supply Ability:

1000pcs per day

Product Description

IE4 Series YE4-90-2 2.2kW 2hp 220V 380V 2800 Rpm Three Phase Electric Motor Ac Motor for Pump

1,lE4 series ultra-high eficiency three-phase asynchronous motor is a highly eficient new upgraded product independently developed byour company.

2,lts efficlency meets the level 2 energy efficiency standard of GB 18613-2020 and IEC60034-30-1 lE4 efficiency index, The mounting dimensions confomms to lEC standard and national standard, customers can realize fast switching,

3, YE4 series motor has the characteristisof beautiful appearance, low loss, low noise, low vibration, safe and reliable, easy maintenance, etc.

4, The products are mainly equipped with fans, water pumps, compressors, engineering machinery and other equipment, which are widely used in ventilation and refrigeration, building, oil and gas, petrochemicals, coal gasification, metallurgy, electric power, nuclear power, ship building industrial automation and other fields.

Output power range	0.75kw-315kw	Speed	1000rpm/1500rpm/3000rpm
rated voltage	220/380V,230/400V,380V/660V,400/690V	Rated frequency	50hz,60hz
Insulation class	class F or H	Protection class	IP54/IP55
Housing Material	Aluminum/cast iron	Frame size	80mm-355mm

1,100% copper wire, best quality materials construction according with national standard easy maintenance,precision winding

production of enameled wire,high thermal conductivity,good heat dissipation effect.

2, Superior Iron core,The raw material is made of cold rolled first-grade non-oriented silicon steel with good toughness and strong bearing capacity.

3, High precision rotor, 800 cold-rolled steel rotor,intelligent finishing,durable and long-lasting,new national standard rotor, through strict static and dynamic,balance test to ensure smooth operation and noise reduction.

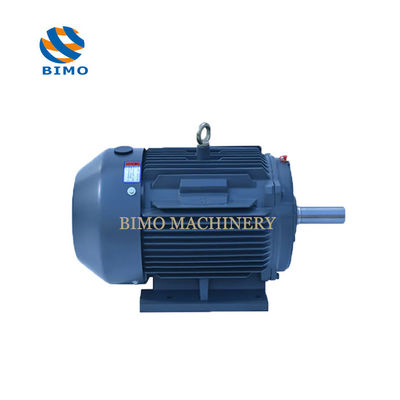

IE4 Series YE4-90-2 2.2kW 2hp 220V 380V 2800 Rpm Three Phase Electric Motor Ac Motor for Pump 0

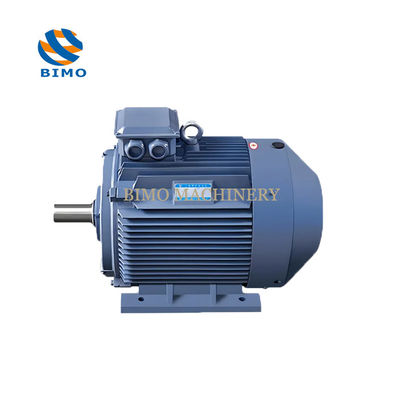

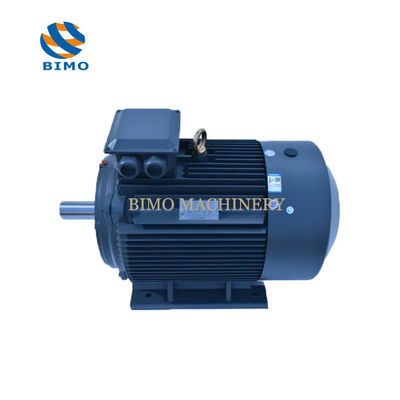

IE4 Series YE4-90-2 2.2kW 2hp 220V 380V 2800 Rpm Three Phase Electric Motor Ac Motor for Pump 1

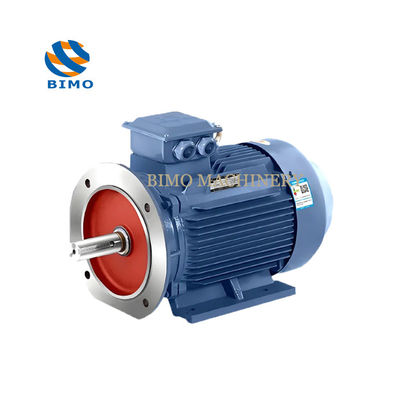

IE4 Series YE4-90-2 2.2kW 2hp 220V 380V 2800 Rpm Three Phase Electric Motor Ac Motor for Pump 4

FAQ

Q: Are you Factory or Trading Company?
A: We are Factory. That has been focusing on motors and accessories for more than 20 years.

Q: What is your warranty?
A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.

Q: What kind of motor can you supply?
A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.

Q: Do you offer OEM Service?
A: Yes. We offer OEM/ODM service.

Q: What is your lead Time?
A: Usually 10 days. Precise Time depend on Qty.
