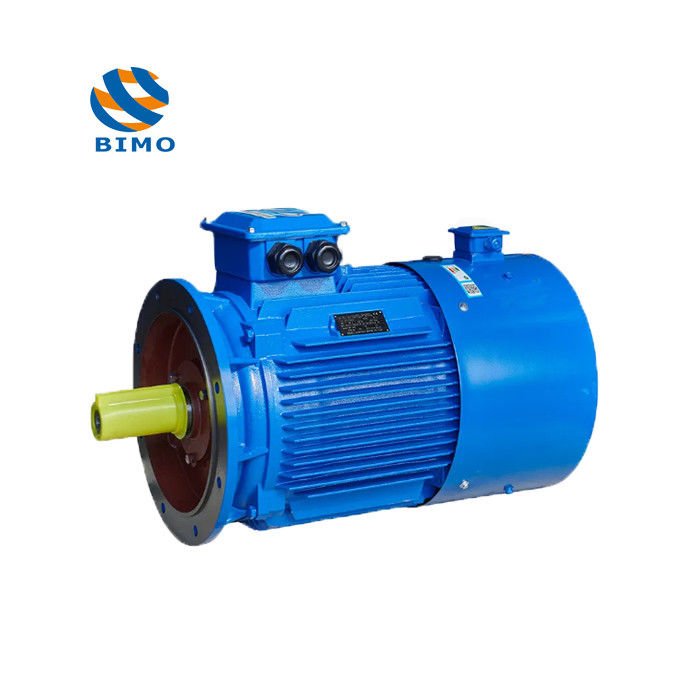

YVF2/YVP Series YVF2-280S-2 75KW Variable Frequency Speed Three-Phase Asynchronous Motor

Brand Name:	BM
Model Number:	YVF2-280S-2
MOQ:	10 pcs
Price:	USD38-USD680
Packaging Details:	Cartons/Pallet
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Name:

75KW Variable Speed Ac Motor

Insulation Class:

Mounting Type:

B3 B5 B35

Frequency:

50Hz/60Hz

Enclosure:

Power:

Supply Ability:

1000pcs per day

Product Description

YVF2/YVP Series YVF2-280S-2 75KW Variable Frequency Speed Three-Phase Asynchronous Motor

1, YVF2 Series Variable Speed Motors are AC high efficiency, energy saving motors. It can be configured with the frequency converter from domastic and abroad.

2, It has the characteristics with reliable operation and easy maintenance. Separate axial-flow ventilator is installed, which can guarantee a better cooling effect in different speed.

3, YVF2 series motors can be widely applied to the equipment which need speed control in light industry, textile,chemical, metallurgy and machine tool industries etc

4, YVF2 series motors are supplied with the ball bearing as standard. These bearings are either of the sealed or regreasable type.

Model	Rated Output	Rated current	Rated Speed	Eff	Power Factor	Rated Torque	Noise Level LW	Constant Torque	Constant Output
Model		Rated current	Rated Speed	Eff	Power Factor	Rated Torque	Noise Level LW	Frequency Range	Frequency Range
YVF2	kW	(A)	(r/min)	%	cosφ	(N.m)	dB(A)	Hz	Hz
Synchronous speed 3000r/min
YVF2-80M1-2	0.75	1.83	2845	75	0.83	2.52	73	5-50	50-100
YVF2-80M2-2	1.1	2.61	2845	76.2	0.84	3.69	73
YVF2-90S-2	1.5	3.46	2840	78.5	0.84	5.04	76
YVF2-90L-2	2.2	4.85	2840	81	0.85	7.4	76
YVF2-100L-2	3	6.34	2860	82.6	0.87	10.1	79
YVF2-112M-2	4	8.2	2880	81.2	0.88	13.3	80
YVF2-132S1-2	5.5	11.1	2900	85.7	0.88	18.1	86
YVF2-132S2-2	7.5	14.9	2900	87	0.88	24.7	86
YVF2-160M1-2	11	21.2	2930	88.4	0.89	35.9	90
YVF2-160M2-2	15	28.6	2930	89.4	0.89	48.9	90
YVF2-160L-2	18.5	34.7	2930	90	0.9	60.3	90
YVF2-180M-2	22	41	2940	90.5	0.9	71.5	91
YVF2-200L1-2	30	55.4	2950	91.4	0.9	97	92
YVF2-200L2-2	37	67.9	2950	92	0.9	120	92
YVF2-225M-2	45	82.1	2960	92.5	0.9	145	94
YVF2-250M-2	55	99.8	2965	93	0.9	177	96	5-50	50-70
YVF2-280S-2	75	135	2970	93.6	0.9	241	99
YVF2-280M-2	90	160	2970	93.9	0.91	297	99
YVF2-315S-2	110	195	2975	94	0.91	353	105	5-50	50-60
YVF2-315M-2	132	233	2975	94.5	0.91	424	105
YVF2-315L1-2	160	279	2975	94.6	0.92	514	109
YVF2-315L-2	185	323	2975	94.6	0.92	594	109
YVF2-315L2-2	200	348	2975	94.8	0.92	642	109
YVF2-315L3-2	220	383	2975	94.8	0.92	706	109
YVF2-355M1-2	220	383	2975	94.8	0.92	705	111
YVF2-355M2-2	250	435	2980	95	0.92	801	111
YVF2-355L1-2	280	487	2980	95	0.92	897	113
YVF2-355L-2	315	548	2980	95	0.92	1009	113
YVF2-355L2-2	355	617	2980	95	0.92	1138	113
YVF2-355L3-2	375	652	2980	95	0.92	1202	113

YVF2/YVP Series YVF2-280S-2 75KW Variable Frequency Speed Three-Phase Asynchronous Motor 0

YVF2/YVP Series YVF2-280S-2 75KW Variable Frequency Speed Three-Phase Asynchronous Motor 2

YVF2/YVP Series YVF2-280S-2 75KW Variable Frequency Speed Three-Phase Asynchronous Motor 3

YVF2/YVP Series YVF2-280S-2 75KW Variable Frequency Speed Three-Phase Asynchronous Motor 4

Q: Are you Factory or Trading Company?
A: We are Factory. That has been focusing on motors and accessories for more than 20 years.

Q: What is your warranty?
A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.

Q: What kind of motor can you supply?
A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.

Q: Do you offer OEM Service?
A: Yes. We offer OEM/ODM service.

Q: What is your lead Time?
A: Usually 10 days. Precise Time depend on Qty.
