AC Electric Motor

IE2 IE3 YE2 YE3 AC Electric Motor Asynchronous 3 Phase B5 Mounting 0.55kw 0.75kw

All Category

PMDC Motor

Mrs. Anny Song

motorexport@bimo-idea.com

0086-18802094629

Contact Now

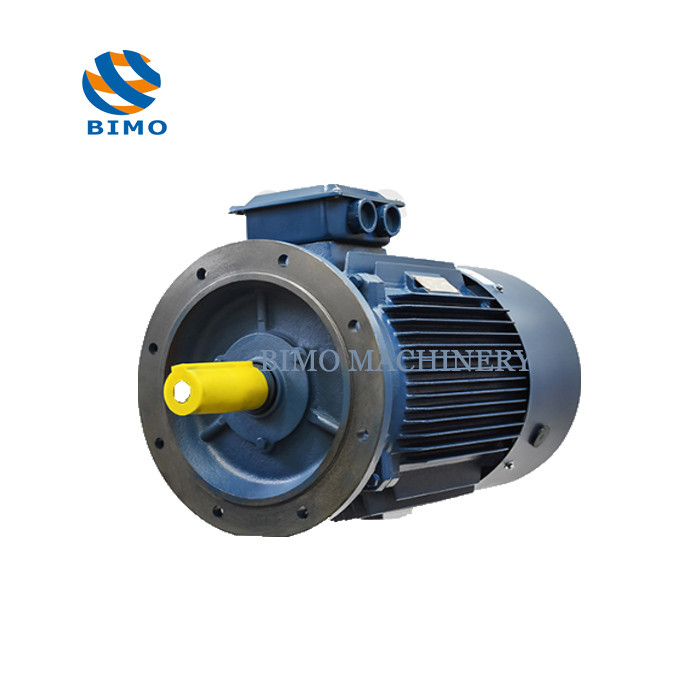

IE2 IE3 YE2 YE3 AC Electric Motor Asynchronous 3 Phase B5 Mounting 0.55kw 0.75kw

Brand Name:	BM
Model Number:	YE2-280M-2
MOQ:	10 pcs
Price:	USD38-USD680
Packaging Details:	Cartons/Pallet
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Name:

0.75kw IE2 Standard Motor

Insulation Class:

Mounting Type:

B5 Mounting

Frequency:

Enclosure:

Power:

0.75kw

Supply Ability:

1000pcs per day

Highlight:

YE3 AC Electric Motor

AC Electric Motor 3 Phase

Asynchronous 3 Phase B5 Mounting

Product Description

High Quality 0.55kw 0.75kw Motor B5 Mounting Three Phase Asynchronous Motor OEM Custom Low Price Chinese Constant Speed IE2/IE3 YE2/YE3

1, YE2 series motor is a small and medium-sized low-voltage three-phase asynchronous motor product improved on Y2 series motor.

2, It adopts fully enclosed, external fan self-cooling, squirrel cage structure. It has the characteristics of novel design, compact structure, good starting performance, low noise, convenient maintenance, more advanced technology and higher efficiency.

3,The basic voltage of this series of motors is 380V, and various specifications such as 660V and 415V can be derived.

4,This series of motors are widely used as the main machine for various machinery such as ventilation, drainage,

construction, mining, transportation, crushing, ceramics, chemical industry, machine tools, etc.

Type		Current	Speed	Eff	Power factor	Locked rotor torque	Locked rotor current	Breakdoen torque
	Power	Current	Speed	Eff		Locked rotor torque	Locked rotor current	Breakdoen torque
		(A)	(r/min)	(%)		Rated torque	Rated cuffrent	Rated torque
Synchronous speed 3000r/min
IE2-80M1-2	0.75	1.77	2840	77.4	0.83	2.3	6.8	2.3
IE2-80M2-2	1.1	2.53	2845	79.6	0.83	2.3	7.3	2.3
IE2-90S-2	1.5	3.34	2850	81.3	0.84	2.3	7.6	2.3
IE2-90L-2	2.2	4.73	2850	83.2	0.85	2.3	7.8	2.3
IE2-100L-2	3	6.19	2860	84.6	0.87	2.3	8.1	2.3
IE2-112M-2	4	8.05	2880	85.8	0.88	2.2	8.3	2.3
IE2-132S1-2	5.5	10.9	2900	87	0.88	2.2	8	2.3
IE2-132S2-2	7.5	14.5	2900	88.1	0.89	2.2	7.8	2.3
IE2-160M1-2	11	21	2930	89.4	0.89	2.2	7.9	2.3
IE2-160M2-2	15	28.4	2930	90.3	0.89	2.2	8	2.3
IE2-160L-2	18.5	34.7	2930	90.9	0.89	2.2	8.1	2.3
IE2-180M	22	41	2940	91.3	0.89	2.2	8.2	2.3
IE2-200L1-2	30	55.7	2950	92	0.89	2.2	7.5	2.3
IE2-200L2-2	37	68.3	2950	92.5	0.9	2.2	7.5	2.3
IE2-225M-2	45	82.7	2970	92.9	0.89	2.2	7.6	2.3
IE2-250M-2	55	101	2970	93.2	0.89	2.2	6.9	2.3
IE2-280S-2	75	163	2970	994.1	0.89	2	7.6	2.3
IE2-280M-2	90	160	2970	93.8	0.91	2	7.5	2.3
IE2-315S-2	110	197	2980	94.3	0.89	2	6.9	2.3
IE2-315M-2	132	236	2980	94.6	0.89	2	7	2.3
IE2-315L1-2	160	282	2980	94.8	0.9	2	7.1	2.2
IE2-315L-2	200	352	2980	95	0.91	2	7.1	2.2
IE2-355M1-2	220	387	2980	95	0.91	2	7.1	2.2
IE2-355M2-2	250	439	2980	95	0.91	2	7.1	2.2
IE2-355L1-2	280	492	2980	95	0.91	2	7.1	2.2
IE2-355L2-2	315	554	2980	95	0.91	2	7.1	2.2

IE2 IE3 YE2 YE3 AC Electric Motor Asynchronous 3 Phase B5 Mounting 0.55kw 0.75kw 0

IE2 IE3 YE2 YE3 AC Electric Motor Asynchronous 3 Phase B5 Mounting 0.55kw 0.75kw 2

IE2 IE3 YE2 YE3 AC Electric Motor Asynchronous 3 Phase B5 Mounting 0.55kw 0.75kw 3

FAQ

Q: Are you Factory or Trading Company?
A: We are Factory. That has been focusing on motors and accessories for more than 20 years.

Q: What is your warranty?
A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.

Q: What kind of motor can you supply?
A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.

Q: Do you offer OEM Service?
A: Yes. We offer OEM/ODM service.

Q: What is your lead Time?
A: Usually 10 days. Precise Time depend on Qty.
