IE2 160m-4-11kw 15 HP Three Phase Motor 380V 50Hz 60Hz IP55 Class F Electric Motor

All Category

PMDC Motor

Mrs. Anny Song

motorexport@bimo-idea.com

0086-18802094629

Contact Now

IE2 160m-4-11kw 15 HP Three Phase Motor 380V 50Hz 60Hz IP55 Class F Electric Motor

Brand Name:	BM
Model Number:	160m-4
MOQ:	10 pcs
Price:	USD38-USD680
Packaging Details:	Cartons/Pallet
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Name:

11kw AC Motor

Insulation Class:

Mounting Type:

Frequency:

50Hz/60Hz

Enclosure:

Power:

Supply Ability:

1000pcs per day

Highlight:

15 Hp Three Phase Motor

Three Phase Motor 380V

IP55 Class F Electric Motor

Product Description

IE2 160m-4-11kw 15HP Three Phase Motor 380V 50Hz 60Hz IP55 Class F AC Electric Motor

IE2 Series Cast Iron Three Phase Induction Motor is specially designed for European market, whose terminal box is located on the top of motor.They are totally enclosed and fan-cooling designed. They are newly designed in conformity with the relevant requirements / rules of IEC standards.

For the Connection Model of 2p 4p 6p 8p Y2 motor, please refer to the Name Plate on the motor (The Y Connection is adopted by motors' Output equal or below 3kW; The Delta-Connection is adopted by motors' Output above 4kW).

Type		Current	Speed	Eff	Power factor	Locked rotor torque	Locked rotor current	Breakdoen torque
	Power	Current	Speed	Eff		Locked rotor torque	Locked rotor current	Breakdoen torque
		(A)	(r/min)	(%)		Rated torque	Rated cuffrent	Rated torque
Synchronous speed 3000r/min
IE2-80M1-2	0.75	1.77	2840	77.4	0.83	2.3	6.8	2.3
IE2-80M2-2	1.1	2.53	2845	79.6	0.83	2.3	7.3	2.3
IE2-90S-2	1.5	3.34	2850	81.3	0.84	2.3	7.6	2.3
IE2-90L-2	2.2	4.73	2850	83.2	0.85	2.3	7.8	2.3
IE2-100L-2	3	6.19	2860	84.6	0.87	2.3	8.1	2.3
IE2-112M-2	4	8.05	2880	85.8	0.88	2.2	8.3	2.3
IE2-132S1-2	5.5	10.9	2900	87	0.88	2.2	8	2.3
IE2-132S2-2	7.5	14.5	2900	88.1	0.89	2.2	7.8	2.3
IE2-160M1-2	11	21	2930	89.4	0.89	2.2	7.9	2.3
IE2-160M2-2	15	28.4	2930	90.3	0.89	2.2	8	2.3
IE2-160L-2	18.5	34.7	2930	90.9	0.89	2.2	8.1	2.3
IE2-180M	22	41	2940	91.3	0.89	2.2	8.2	2.3
IE2-200L1-2	30	55.7	2950	92	0.89	2.2	7.5	2.3
IE2-200L2-2	37	68.3	2950	92.5	0.9	2.2	7.5	2.3
IE2-225M-2	45	82.7	2970	92.9	0.89	2.2	7.6	2.3
IE2-250M-2	55	101	2970	93.2	0.89	2.2	6.9	2.3
IE2-280S-2	75	163	2970	994.1	0.89	2	7.6	2.3
IE2-280M-2	90	160	2970	93.8	0.91	2	7.5	2.3
IE2-315S-2	110	197	2980	94.3	0.89	2	6.9	2.3
IE2-315M-2	132	236	2980	94.6	0.89	2	7	2.3
IE2-315L1-2	160	282	2980	94.8	0.9	2	7.1	2.2
IE2-315L-2	200	352	2980	95	0.91	2	7.1	2.2
IE2-355M1-2	220	387	2980	95	0.91	2	7.1	2.2
IE2-355M2-2	250	439	2980	95	0.91	2	7.1	2.2
IE2-355L1-2	280	492	2980	95	0.91	2	7.1	2.2
IE2-355L2-2	315	554	2980	95	0.91	2	7.1	2.2

1, 100% copper wire, best quality materials construction according with national standard easy maintenance,precision winding

production of enameled wire,high thermal conductivity,good heat dissipation effect.

2, Superior Iron core,The raw material is made of cold rolled first-grade non-oriented silicon steel with good toughness and strong bearing capacity.

3, High precision rotor, 800 cold-rolled steel rotor,intelligent finishing,durable and long-lasting,new national standard rotor, through strict static and dynamic,balance test to ensure smooth operation and noise reduction.

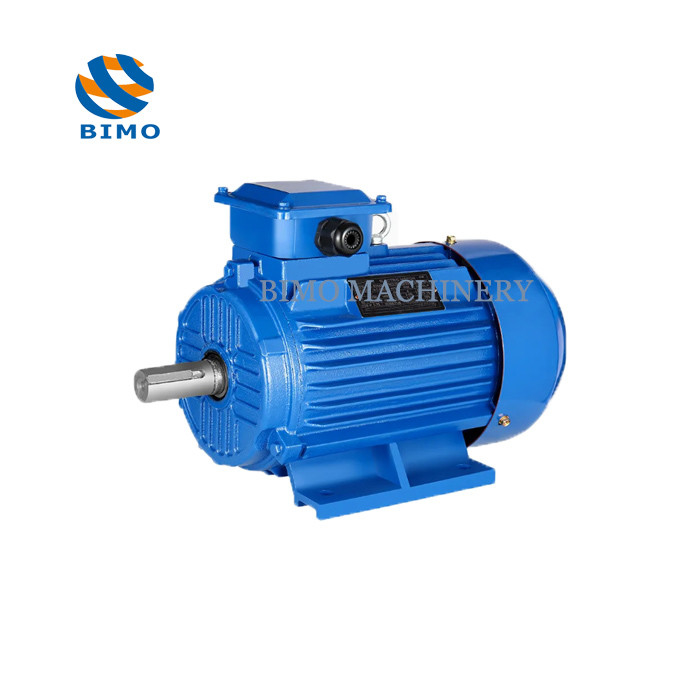

IE2 160m-4-11kw 15 HP Three Phase Motor 380V 50Hz 60Hz IP55 Class F Electric Motor 0

IE2 160m-4-11kw 15 HP Three Phase Motor 380V 50Hz 60Hz IP55 Class F Electric Motor 1

IE2 160m-4-11kw 15 HP Three Phase Motor 380V 50Hz 60Hz IP55 Class F Electric Motor 3

FAQ

Q: Are you Factory or Trading Company?
A: We are Factory. That has been focusing on motors and accessories for more than 20 years.

Q: What is your warranty?
A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.

Q: What kind of motor can you supply?
A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.

Q: Do you offer OEM Service?
A: Yes. We offer OEM/ODM service.

Q: What is your lead Time?
A: Usually 10 days. Precise Time depend on Qty.
