products details

Home > Products >

AC Electric Motor

High Effciency 7.5kw Induction Motor IP55 IE2 AC Motor B3 Foot Mounting Motor

All Category

PMDC Motor

Mrs. Anny Song

motorexport@bimo-idea.com

0086-18802094629

Contact Now

High Effciency 7.5kw Induction Motor IP55 IE2 AC Motor B3 Foot Mounting Motor

Brand Name:	BM
Model Number:	IE2
MOQ:	10 pcs
Price:	USD38-USD680
Packaging Details:	Cartons/Pallet
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Name:

IE2 AC Motor

Insulation Class:

Mounting Type:

Frequency:

50Hz

Enclosure:

IP55

Power:

7.5KW

Supply Ability:

1000pcs per day

Highlight:

7.5kw ac electric motor

7.5kw electric ac motor

ip55 ac electric motor

Product Description

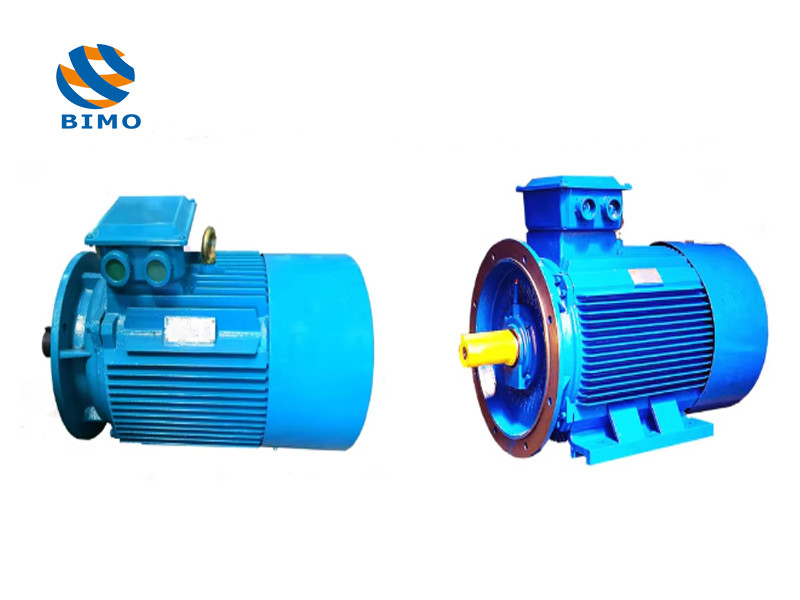

High Effciency 7.5kw Induction Motor IP55 IE2 AC Motor B3 Foot Mounting Motor

1, IE2 High Effciency Three Phase Induction Motor

2, The housing , front and back cover are made of cast-iron , with high hardness , strong bearing capacity , firm structure and uneasy to deform . High effciency and energy saving , low noise and little vibration . Insulation class : F ; Protection class : IP 54 or IP55 ;

3, Circumstance for use : The altitude not exceeding 1000 m above sea level . The ambient temperature subject to seasonal variations but not exceeding +40ºC and not less than -15ºC .

4, Energy saving and environmental protection of this products , can be widely use for fan , water pump , air compressor , injection molding machines and other equipments , as well as transportation , mixing , printing , agricultural machinery , food and other places without flammable , explosive or corrosive gases .

Type		Current	Speed	Eff	Power factor	Locked rotor torque	Locked rotor current	Breakdoen torque
	Power	Current	Speed	Eff		Locked rotor torque	Locked rotor current	Breakdoen torque
		(A)	(r/min)	(%)		Rated torque	Rated cuffrent	Rated torque
Synchronous speed 3000r/min
IE2-80M1-2	0.75	1.77	2840	77.4	0.83	2.3	6.8	2.3
IE2-80M2-2	1.1	2.53	2845	79.6	0.83	2.3	7.3	2.3
IE2-90S-2	1.5	3.34	2850	81.3	0.84	2.3	7.6	2.3
IE2-90L-2	2.2	4.73	2850	83.2	0.85	2.3	7.8	2.3
IE2-100L-2	3	6.19	2860	84.6	0.87	2.3	8.1	2.3
IE2-112M-2	4	8.05	2880	85.8	0.88	2.2	8.3	2.3
IE2-132S1-2	5.5	10.9	2900	87	0.88	2.2	8	2.3
IE2-132S2-2	7.5	14.5	2900	88.1	0.89	2.2	7.8	2.3
IE2-160M1-2	11	21	2930	89.4	0.89	2.2	7.9	2.3
IE2-160M2-2	15	28.4	2930	90.3	0.89	2.2	8	2.3
IE2-160L-2	18.5	34.7	2930	90.9	0.89	2.2	8.1	2.3
IE2-180M	22	41	2940	91.3	0.89	2.2	8.2	2.3
IE2-200L1-2	30	55.7	2950	92	0.89	2.2	7.5	2.3
IE2-200L2-2	37	68.3	2950	92.5	0.9	2.2	7.5	2.3
IE2-225M-2	45	82.7	2970	92.9	0.89	2.2	7.6	2.3
IE2-250M-2	55	101	2970	93.2	0.89	2.2	6.9	2.3
IE2-280S-2	75	163	2970	994.1	0.89	2	7.6	2.3
IE2-280M-2	90	160	2970	93.8	0.91	2	7.5	2.3
IE2-315S-2	110	197	2980	94.3	0.89	2	6.9	2.3
IE2-315M-2	132	236	2980	94.6	0.89	2	7	2.3
IE2-315L1-2	160	282	2980	94.8	0.9	2	7.1	2.2
IE2-315L-2	200	352	2980	95	0.91	2	7.1	2.2
IE2-355M1-2	220	387	2980	95	0.91	2	7.1	2.2
IE2-355M2-2	250	439	2980	95	0.91	2	7.1	2.2
IE2-355L1-2	280	492	2980	95	0.91	2	7.1	2.2
IE2-355L2-2	315	554	2980	95	0.91	2	7.1	2.2

1,100% copper wire, best quality materials construction according with national standard easy maintenance,precision winding

production of enameled wire,high thermal conductivity,good heat dissipation effect.

2, Superior Iron core,The raw material is made of cold rolled first-grade non-oriented silicon steel with good toughness and strong bearing capacity.

3, High precision rotor, 800 cold-rolled steel rotor,intelligent finishing,durable and long-lasting,new national standard rotor, through strict static and dynamic,balance test to ensure smooth operation and noise reduction.

High Effciency 7.5kw Induction Motor IP55 IE2 AC Motor B3 Foot Mounting Motor 0

High Effciency 7.5kw Induction Motor IP55 IE2 AC Motor B3 Foot Mounting Motor 2

High Effciency 7.5kw Induction Motor IP55 IE2 AC Motor B3 Foot Mounting Motor 3

FAQ

Q: Are you Factory or Trading Company?
A: We are Factory. That has been focusing on motors and accessories for more than 20 years.

Q: What is your warranty?
A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.

Q: What kind of motor can you supply?
A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.

Q: Do you offer OEM Service?
A: Yes. We offer OEM/ODM service.

Q: What is your lead Time?
A: Usually 10 days. Precise Time depend on Qty.
