AC Electric Motor

YE2-400M2-4 AC Electric Motor Low Voltage Fully Enclosed Cage Type Three Phase Asynchronous Motor

All Category

PMDC Motor

Mrs. Anny Song

motorexport@bimo-idea.com

0086-18802094629

Contact Now

YE2-400M2-4 AC Electric Motor Low Voltage Fully Enclosed Cage Type Three Phase Asynchronous Motor

Brand Name:	BM
Model Number:	YE2-400M2-4
MOQ:	10 pcs
Price:	USD38-USD680
Packaging Details:	Cartons/Pallet
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Name:

Asynchronous Motor

Insulation Class:

Mounting Type:

Frequency:

50Hz/60Hz

Enclosure:

Power:

400kw

Supply Ability:

1000pcs per day

Highlight:

YE2-400M2-4 AC Electric Motor

AC Electric Motor Low Voltage

Cage Type Three Phase Asynchronous Motor

Product Description

YE2-400M2-4 400KW B3 Low Voltage High Power Fully Enclosed Cage Type Three-Phase Asynchronous Motor

1,YE2 series low voltage high power fully enclosed cage type three-phase asynchronous motor is
designed by our company according to the needs of foreign markets, using new materials, new processes and reliability technology.

2, The motor adopts high strength cast iron structure, and the outside of the base has orthogonal distribution of heat dissipation ribs, which has good heat dissipation and good overall rigidity.

3, The motor adopts F class insulation, protection level IP55, rated voltage of 380V, rated frequency of 50HZ, installation form of IMB3,
 IMB35, IMV1, cooling method of IC411, the product is small in size, light in weight, compact in structure, high in efficiency, low in noise,
and meets the environmental protection requirements of customers.

4, This series of motors are suitable for driving various general machinery, such as water pumps, fans, compressors, transportation machinery,
etc., and can also be used as prime movers in petrochemical and mining enterprises.

Model	(kW)	(A)	(r/min)	(%)	Power	Stall Torque	Max Torque	Stalled rotor current	Noise	Weight(kg)
Model	(kW)	(A)	(r/min)	(%)	Factor	Rated Torque	Rate Torque	Rated Current	Noise	Weight(kg)
YE2-400M1-2	355	621.7	2980	96.4	0.9	1.3	2.5	6.5	108	3000
YE2-400M2-2	400	700.5	2980	96.4	0.9	1.3	2.5	6.5	108	3100
YE2-400M3-2	450	788.1	2980	96.4	0.9	1.3	2.5	6.5	108	3200
YE2-400L1-2	500	875.6	2980	96.4	0.9	1.3	2.5	6.5	108	3300
YE2-400L2-2	560	968.9	2980	96.5	0.91	1.2	2.5	7	109	3400
YE2-400M1-4	355	636.5	1490	96.3	0.88	1.6	2.5	6.5	105	3100
YE2-400M2-4	400	717.2	1490	96.3	0.88	1.6	2.5	6.5	105	3200
YE2-400M3-4	450	806.8	1490	96.3	0.88	1.6	2.5	6.5	105	3300
YE2-400L1-4	500	895.5	1490	96.4	0.88	1.4	2.5	6.5	105	3400
YE2-400L2-4	560	991.7	1490	96.4	0.89	1.4	2.5	6.5	108	3800
YE2-4501-4	630	1114.5	1490	96.5	0.89	1.4	2.5	6.5	108	4750
YE2-4502-4	710	1256.1	1490	96.5	0.89	1.4	2.5	6.5	108	5000
YE2-4503-4	800	1398.1	1490	96.6	0.9	1.4	2.5	6.5	108	5150
YE2-4504-4	900	1572.9	1490	96.6	0.9	1.4	2.5	6.5	108	5500
YE2-400M1-6	280	540.4	990	96	0.82	1.8	2.5	6.5	102	3000
YE2-400M2-6	315	608	990	96	0.82	1.8	2.5	6.5	102	3100
YE2-400M3-6	355	685.2	990	96	0.82	1.8	2.5	6.5	102	3200
YE2-400L2-6	400	761.2	990	96.2	0.83	1.6	2.4	6.5	102	3400
YE2-400L3-6	450	856.3	990	96.2	0.83	1.6	2.4	6.5	102	3550
YE2-4501-6	500	949.5	995	96.4	0.83	1.6	2.4	6.5	102	4500
YE2-4502-6	560	1050.8	995	96.4	0.84	1.6	2.4	6.5	105	4750
YE2-4503-6	630	1180.9	995	96.5	0.84	1.6	2.4	6.5	105	5100
YE2-4504-6	710	1330.8	995	96.5	0.84	1.6	2.4	6.5	105	5450
YE2-400M1-8	250	498.7	740	95.2	0.8	1.6	2.5	6.5	95	3200
YE2-400M2-8	280	558.6	740	95.2	0.8	1.6	2.5	6.5	95	3300
YE2-400L1-8	315	628.4	740	95.2	0.8	1.6	2.5	6.5	95	31100
YE2-400L2-8	355	705.3	740	95.6	0.8	1.6	2.4	6	95	3500
YE2-400L3-8	400	794.7	740	95.6	0.8	1.6	2.4	6	95	4500
YE2-4502-8	450	869.5	745	95.9	0.82	1.6	2.4	6	99	5100
YE2-4503-8	500	963.1	745	96.2	0.82	1.6	2.4	6	99	5400
YE2-4504-8	560	1078.6	745	96.2	0.82	1.6	2.4	6	102	5550

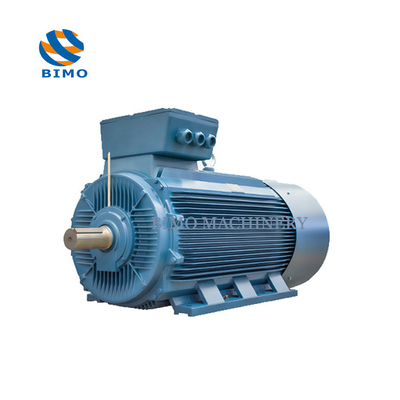

YE2-400M2-4 AC Electric Motor Low Voltage Fully Enclosed Cage Type Three Phase Asynchronous Motor 0

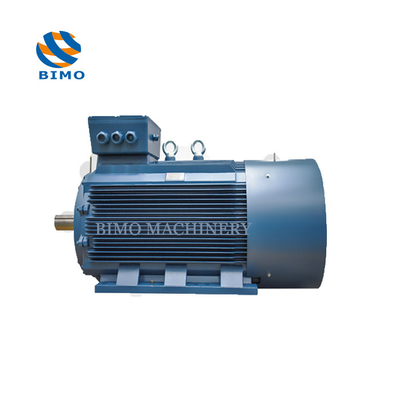

YE2-400M2-4 AC Electric Motor Low Voltage Fully Enclosed Cage Type Three Phase Asynchronous Motor 3

FAQ

Q: Are you Factory or Trading Company?
A: We are Factory. That has been focusing on motors and accessories for more than 20 years.

Q: What is your warranty?
A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.

Q: What kind of motor can you supply?
A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.

Q: Do you offer OEM Service?
A: Yes. We offer OEM/ODM service.

Q: What is your lead Time?
A: Usually 10 days. Precise Time depend on Qty.
